Vehicle Exploded View - APRILIA TUONO 125 4T E4 ABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

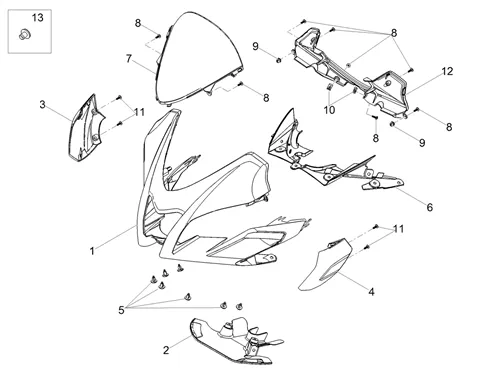

Carrosserie : 02.040 AVANT CARÈNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/863/Tuono_125_4T_E4_ABS_2020_(EMEA)_02.040.png)
1 |
2H003527000XN5-SHIELD More informationQuantity required : 1 |
||||||
|
1 |
2H003533000XN5-SHIELD More informationQuantity required : 1 |
||||||
|
2 |
2B004091-LATCH INF. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/6/5/4/img/108654.jpg)
3 |
SIDE PANEL RIGHT DE HEADLAMP OEM APRILIA 125-1100 TUONO 2015 > 2020-2B001754 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/6/5/5/img/108655.jpg)
4 |
SIDE PANEL LEFT DE HEADLAMP OEM APRILIA 125-1100 TUONO 2015 > 2020-2B001755 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
5 |
RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563 More informationQuantity required : 6 |
||||||
|
6 |
2B003718-LATCH INF. FRONT More informationQuantity required : 1 |
||||||
|
7 |
2H001935-COUPOLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
8 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
9 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
10 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 2 |
||||||
|
11 |
AP8150512-SCREW TARAUD More informationQuantity required : 4 |
||||||
|
12 |
2B003671-BRACKET PANEL DE EDGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
13 |
RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616 More informationQuantity required : 6 |
