Vehicle Exploded View - APRILIA TUONO 125 4T E4 ABS 2020 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

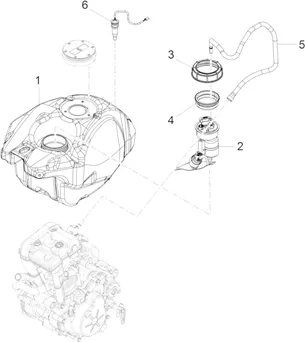

Réservoir : 09.010 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/863/Tuono_125_4T_E4_ABS_2020_(EMEA)_09.010.png)
1 |
897759-FUEL TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/4/img/67884.jpg)
2 |
FUEL PUMP OEM APRILIA 125 RS 2011 > 2019-640517 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
3 |
NUT/BUSH PUMP OEM PIAGGIO COMMON A LA RANGE-576546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
4 |
GASKET OF JAUGE A FUEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-656003 More informationQuantity required : 1 |
||||||
|
5 |
2B002300-FUEL HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/0/9/img/72809.jpg)
6 |
JAUGE/SONDE A FUEL OEM DERBI 50 SENDA 2007 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 > (FIL JAUNE/VERT + FIL RED)-B043773 More informationQuantity required : 1 |
