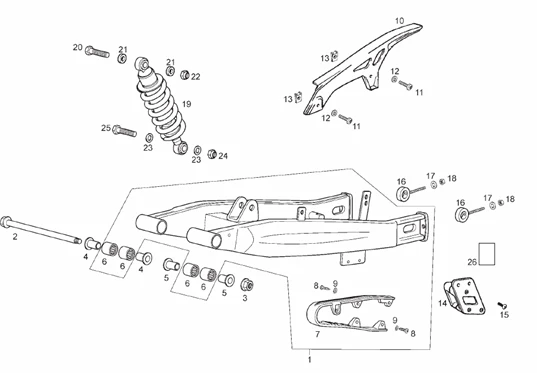

Vehicle Exploded View - DERBI TERRA 125 Terra 125 4T E3 2007-2009 (EMEA)

	P2R reference	189005
	Maker reference	86446900WGB5

86446900WGB5 - BRAS OSCILLANT

	P2R reference	154389
	Maker reference	867217

867217-ESSIEU

	P2R reference	154390
	Maker reference	866758

866758-CASQ. SEPAR. DR. BASCULNT. TER/MUL125

	P2R reference	154391
	Maker reference	866757

BUSH EN T (L = 39) OEM PIAGGIO 125 RX, SX APRILIA > 2018-866757

	P2R reference	67416
	Maker reference	600161

CAGE A AIGUILLES DE OEM MOPED SWINGARM OEM PIAGGIO 125-250-300 VESPA GTS, 125 VESPA SPRINT, PRIMAVERA, 500 X9, BEVERLY-600161

	P2R reference	154384
	Maker reference	00H01807331

GUIDE CHAIN OEM APRILIA 125 RX, SX 2018 >-00H01807331

	P2R reference	63751
	Maker reference	000734819645

SCREW PARKER (4, 8X19) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00073481964

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	64557
	Maker reference	00H01508181

COVER CHAIN OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006-00H01508181

	P2R reference	63696
	Maker reference	000120612005

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	69853
	Maker reference	86133R

GUIDE CHAIN 50 A BOX OEM 50 GILERA SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >/DERBI 50 SENDA 2006 > (COMPLETE)-86133R

	P2R reference	187772
	Maker reference	00H01502871

00H01502871 - GUIDE CHAINE

	P2R reference	63752
	Maker reference	000920612145

00092061214-SCREW A HEAD RONDE A FENTES C

	P2R reference	64486
	Maker reference	00H01305171

TENDEUR DE CHAIN OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA SX, RX 2006 > 2017-00H01305171

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	189006
	Maker reference	8650630001

8650630001-CTO. AMORTIGUAD. ROJO. TER125 ADV

	P2R reference	189007
	Maker reference	863268

863268 - CTO.AMORTIGUADOR TER125

	P2R reference	64230
	Maker reference	00H00303892

SCREW TH (12X58) MOUNTING SHOCK ABSORBER OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT 2006 >-00H00303892

	P2R reference	63609
	Maker reference	000012131905

00001213190-BUSH DE BUTEE

	P2R reference	63716
	Maker reference	000231120005

NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-00023112000

	P2R reference	63633
	Maker reference	000031154225

WASHER PLATE (12X21X1) OEM PIAGGIO COMMON A LA RANGE-00003115422

	P2R reference	63716
	Maker reference	000231120005

NUT AUTOBLOQUANT/NYLSTOP (M12) OEM PIAGGIO COMMON A LA RANGE-00023112000

	P2R reference	64226
	Maker reference	00H00302892

SCREW TH (12X175) OEM PIAGGIO COMMON A LA RANGE-00H00302892

	P2R reference	69963
	Maker reference	862535

862535 - MONOGRAMME
