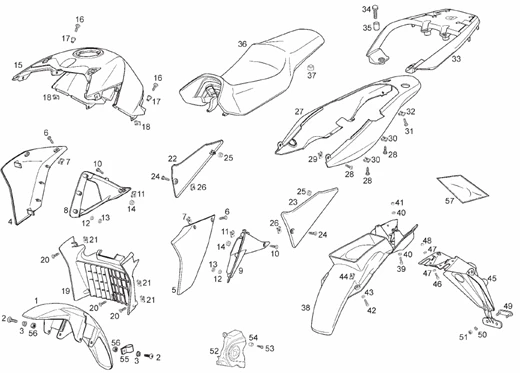

Vehicle Exploded View - DERBI TERRA 125 Terra 125 4T E3 2007-2009 (EMEA)

	P2R reference	189053
	Maker reference	864958

864958-GUARDAB. DLNT. TER125 ADV

	P2R reference	64544
	Maker reference	00H01503701

SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-00H01503701

	P2R reference	65337
	Maker reference	00N01000821

SPACER/BUSH BODY PANEL REAR OEM PIAGGIO GILERA 50 SMT, RCR 2011 > 2017/DERBI SENDA 2010 > 2017-00N01000821

	P2R reference	189054
	Maker reference	86321600WT25

86321600WT25 - R-TAPA LAT.DLNT.DR.NRJA.IRS.TER125 ADV

	P2R reference	189055
	Maker reference	86321600WB15

86321600WB15 - R-TAPA LAT.DLNT.DR.BLN.AJD.TER125 ADV

	P2R reference	189056
	Maker reference	86321700WB15

86321700WB15 - R-TAPA LAT.DLNT.IZ.BLN.AJD.TER125 ADV

	P2R reference	189057
	Maker reference	86321700WT25

86321700WT25 - R-TAPA LAT.DLNT.IZ.NRJA.IRS.TER125 ADV

	P2R reference	71973
	Maker reference	AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	189025
	Maker reference	863222

863222-TAPA LAT. INF. DR. DPSTO. TER125

	P2R reference	189026
	Maker reference	863221

863221-TAPA LAT. INF. IZ. DPSTO. TER125

	P2R reference	71973
	Maker reference	AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	71410
	Maker reference	AP8120622

WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622

	P2R reference	69844
	Maker reference	861239

WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239

	P2R reference	189027
	Maker reference	00H06303771

00H06303771 - TOPE INT.CAREN.GPR RAC.

	P2R reference	189058
	Maker reference	86321900WT25

86321900WT25 - R-CUBRE-DEPSTO.NRJA.IRS.TER125 ADV

	P2R reference	189059
	Maker reference	86321900WB15

86321900WB15 - CACHE-RESERVOIR

	P2R reference	64544
	Maker reference	00H01503701

SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-00H01503701

	P2R reference	189033
	Maker reference	864109

864109-BUSH

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	189034
	Maker reference	863227

863227-REJILLA RADIADOR TER125

	P2R reference	71973
	Maker reference	AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	189035
	Maker reference	864051

864051 - TAPA LATRL.DR.CAJA FILTRO TER125

	P2R reference	189036
	Maker reference	864052

864052-TAPA LATRL. IZ. CAJA FILTRO TER125

	P2R reference	71973
	Maker reference	AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

	P2R reference	154576
	Maker reference	2B005447

RUBBER GUIDE FIL OEM PIAGGIO COMMON A LA RANGE-2B005447

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	189060
	Maker reference	86322800WT25

86322800WT25 - R-COLIN SILLIN NRJA.IRS.TER125 ADV

	P2R reference	189061
	Maker reference	86322800WB1

86322800WB1 - COLIN SILLIN BLN.AJD.TER125 ADV

	P2R reference	71973
	Maker reference	AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	63664
	Maker reference	000080615005

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00008061500

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	189042
	Maker reference	86322600WN15

86322600WN15 - R-PORTAPAQ.AGARRAD.NGR.API.TER125

	P2R reference	63657
	Maker reference	000060830005

00006083000 - VIS A TETE HEXAGON.AVEC BRIDE

	P2R reference	189044
	Maker reference	864131

864131 - CASQ.FIJ.PORTAPAQ.TER125

	P2R reference	189045
	Maker reference	8632640001

8632640001 - CTO.SILLIN TER125

	P2R reference	189046
	Maker reference	862000

862000 - SILENT BLOCK

	P2R reference	189047
	Maker reference	863223

863223 - GUARDAB.TRASERO TER125

	P2R reference	69497
	Maker reference	847227

SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-847227

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63589
	Maker reference	000000230505

NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-00000023050

	P2R reference	69497
	Maker reference	847227

SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-847227

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	189048
	Maker reference	863224

863224 - SUPLEM.GUARDAB.TRAS.TER125

	P2R reference	69497
	Maker reference	847227

SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-847227

	P2R reference	64840
	Maker reference	00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

	P2R reference	63589
	Maker reference	000000230505

NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-00000023050

	P2R reference	71568
	Maker reference	AP8124718

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	63588
	Maker reference	000000230405

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040

	P2R reference	154421
	Maker reference	863250

863250-TAPA PION SAL. CAMBIO TER125

	P2R reference	64572
	Maker reference	00H01600911

SPACER OEM PIAGGIO COMMON A LA RANGE-00H01600911

	P2R reference	70054
	Maker reference	864454

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	189062
	Maker reference	86749700W0B

86749700W0B - DECALCO SERIE

	P2R reference	189063
	Maker reference	865487

865487-KIT CALCAS TERRA ADVENTURE
