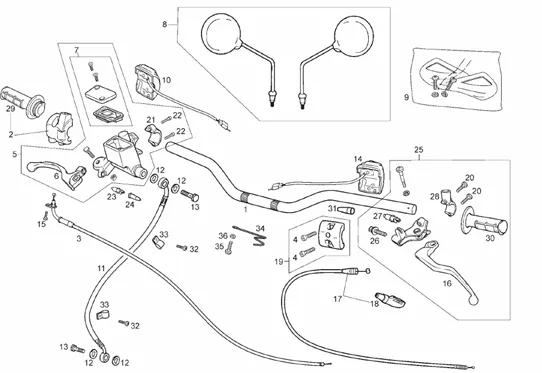

Vehicle Exploded View - DERBI TERRA 125 Terra 125 4T E3 2007-2009 (EMEA)

	P2R reference	189064
	Maker reference	86760900WGB

86760900WGB-HANDLEBAR

	P2R reference	188701
	Maker reference	00H02102621

00H02102621 - POIGNEE DE GAZ COMPLETE

	P2R reference	189065
	Maker reference	863244

863244 - CTO.CABLE GAS TER125

	P2R reference
	Maker reference	00000004515

VIS T.CREUSE 5M80X15 D912/8.8

	P2R reference	127186
	Maker reference	85238R

85238R - SYSTÈME DE FREINAGE

	P2R reference	189066
	Maker reference	865257

865257 - MAIT. CYL. FREIN AV

	P2R reference	70051
	Maker reference	864339

BRAKE LEVER RIGHT AJP OEM PIAGGIO APRILIA 50-125 RS 2011 > 2013-864339

	P2R reference	70318
	Maker reference	867284

LEVER BRAKE OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2011/APRILIA 50 SX, RX 2018 > (COULEUR ALU) 170 MM (J-JUAN)-867284

	P2R reference	187830
	Maker reference	00H00908201

00H00908201 - MANETE DU FREIN AVANT

	P2R reference	72832
	Maker reference	B044198

LEVER BRAKE J-JUAN 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/APRILIA 50-125 RS4 2011 > 190 MM-B044198

	P2R reference	70317
	Maker reference	867283

COVER MAITRE CYLINDER FRONT OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2010 >/APRILIA 50 RS4 2011 >, SX 2018 >-867283

	P2R reference	69962
	Maker reference	862534

COVER DE BRAKE MASTER CYLINDER FRONT/REAR OEM PIAGGIO APRILIA 50-125 RS 2011 > 862534

	P2R reference	70317
	Maker reference	867283

COVER MAITRE CYLINDER FRONT OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2010 >/APRILIA 50 RS4 2011 >, SX 2018 >-867283

	P2R reference	189067
	Maker reference	00H04601001

00H04601001 - MIROIR RETROVISEUR

	P2R reference
	Maker reference	865081

KIT PROTECTORES MANETAS TERRA

	P2R reference	189068
	Maker reference	00H02102631

00H02102631-INVERSEUR WITH CABLE

	P2R reference	189069
	Maker reference	865526

865526 - R-CTO TUBO LIQUIDO FRENO DEL TERRA ADV

	P2R reference	189070
	Maker reference	867064

867064 - TUBE FREIN AV

	P2R reference	189071
	Maker reference	864530

864530-TUBE BRAKE FRONT

	P2R reference	70303
	Maker reference	867238

GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238

	P2R reference	70302
	Maker reference	867237

FITTING OF BRAKE OEM PIAGGIO GILERA 50 SMT 2011 >/DERBI 50 SENDA 2005 >-867237

	P2R reference	69958
	Maker reference	862494

862494 - R-TORNILLO RACORD HIDRAULICO

	P2R reference	189072
	Maker reference	00H02306381

00H02306381-INVERSEUR WITH CABLE

	P2R reference	63693
	Maker reference	000120512005

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-00012051200

	P2R reference	187836
	Maker reference	00H00905291

LEVER CLUTCH OEM DERBI 50 DENDA DRD PRO 2005 > 2011-00H00905291

	P2R reference	189073
	Maker reference	865513

865513-CABLE CLUTCH

	P2R reference	64653
	Maker reference	00H02101011

PROTEGE LEVER CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX-00H02101011

	P2R reference	189074
	Maker reference	864170

864170-FLASQUE

	P2R reference	70316
	Maker reference	867282

FLANGE MOUNTING MAITRE CYLINDER OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX-867282

	P2R reference	64652
	Maker reference	00H02100901

00H02100901-CLAMP *

	P2R reference	63568
	Maker reference	000000045125

SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-00000004512

	P2R reference	63870
	Maker reference	00D01000701

INTERRUPTEUR DE STOP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006, RS 2006 > 2010-00D01000701

	P2R reference	63654
	Maker reference	000050107605

CAPUCHON DE CONTACTEUR DE STOP OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RX/SX-00005010760

	P2R reference	189075
	Maker reference	864174

864174-CTO. PORTAMANT. IZ. TER125

	P2R reference	189076
	Maker reference	864295

864295-SCREW

	P2R reference	63870
	Maker reference	00D01000701

INTERRUPTEUR DE STOP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006, RS 2006 > 2010-00D01000701

	P2R reference	189077
	Maker reference	864296

864296-FLASQUE

	P2R reference	64359
	Maker reference	00H00930091

REVETEMENT DE GRIP RIGHT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00930091

	P2R reference	64358
	Maker reference	00H00930071

REVETEMENT DE GRIP LEFT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00930071

	P2R reference	63654
	Maker reference	000050107605

CAPUCHON DE CONTACTEUR DE STOP OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RX/SX-00005010760

	P2R reference	70054
	Maker reference	864454

GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE 50 A BOX-864454

	P2R reference	189078
	Maker reference	865189

865189 - MUELLE GUIA CABLE TER125 ADV

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171
