Vehicle Exploded View - DERBI TERRA 125 Terra 125 4T E3 2007-2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

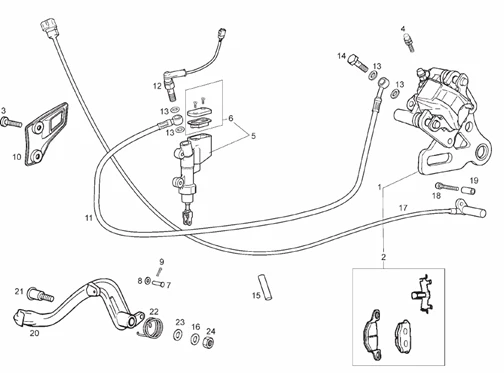

Suspensions - roues : 11 FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1061/Terra_125_4T_E3_2007-2009_(EMEA)_11.png)
1 |
864333 - PINCE FREIN More informationQuantity required : 1 |
||||||
|
2 |
864428 - KIT PLAQUETTES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/9/2/img/63992.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/5/img/70045.jpg)
4 |
SCREW OF BLEEDING BRAKE CALIPER OEM DERBI 50 SENDA 2010 </GILERA 50 SMT, RCR 2006 </APRILIA 50-125 RS 2013 <-864123 More informationQuantity required : 1 |
||||||
|
5 |
864110 - POMPE FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
6 |
864425 - COUVERCLE More informationQuantity required : 1 |
||||||
|
7 |
864407-PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/0/img/71410.jpg)
8 |
WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622 More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
|
10 |
863552-TAPA BOMBA BRAKE TRAS. MUL125 More informationQuantity required : 1 |
||||||
|
11 |
864532 - R-TUBO LIQU.FRENO TRAS.TER125CC More informationQuantity required : 1 |
||||||
|
11 |
865492-R-TUBO LIQUIDO BRAKE TER/MUL 125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/2/4/img/70124.jpg)
12 |
CONTACTEUR DE STOP BRAKE REAR OEM PIAGGIO APRILIA 50-125 RS4 2011 >-865493 More informationQuantity required : 1 |
||||||
|
12 |
864426 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/3/img/70303.jpg)
13 |
GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/5/8/img/69958.jpg)
14 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/6/1/img/70061.jpg)
15 |
864587 - PROTECTOR GUIA CABLES MUL125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/7/img/63787.jpg)
16 |
WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/2/5/img/70025.jpg)
17 |
SENSOR OF SPEED/CABLE/CONTROL DE INSTRUMENT CLUSTER OEM DERBI 50 SENDA 2011 >/GILERA 50 SMT 2011 >, RCR 2011 >/APRILIA 50 SX 2011 >, RX 2011 >-863307 More informationQuantity required : 1 |
||||||
|
18 |
00008063000-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/3/4/img/70034.jpg)
19 |
SPACER (6X10X19) OEM PIAGGIO COMMON A LA RANGE-863745 More informationQuantity required : 1 |
||||||
|
20 |
LEVER/PEDAL OF BRAKE REAR OEM PIAGGIO 125 RX, SX APRILIA 2018 >-865585 More informationQuantity required : 1 |
||||||
|
21 |
00H01103171 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/6/3/img/151763.jpg)
22 |
SPRING OF RETURN PEDAL OF BRAKE OEM PIAGGIO GILERA 50 SMT 2006 >, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2006 >-2B005020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/5/5/img/63655.jpg)
23 |
SPACER DE PEDAL OF BRAKE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX-00005527540 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
24 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000 More informationQuantity required : 1 |
