Vehicle Exploded View - DERBI TERRA 125 Terra 125 4T E3 2007-2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

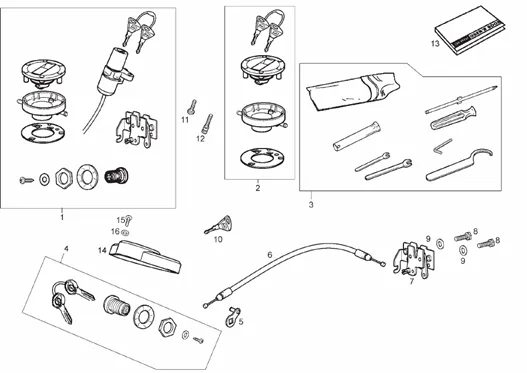

Châssis - parties plastiques - carrosseries : 14 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1061/Terra_125_4T_E3_2007-2009_(EMEA)_14.png)
1 |
863308 - CTO.KIT CERRAD.TER125 More informationQuantity required : 1 |
|||||||||
|
2 |
863990-CAP More informationQuantity required : 1 |
|||||||||
|
3 |
864035 - CTO.BOLSA HRRTAS.TER125 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/2/7/7/img/64277.jpg)
4 |
ENSEMBLE LOCK SEAT REAR OEM DERBI 50 GPR 2001 > 2013-00H00600681 More informationQuantity required : 1 |
|||||||||
|
5 |
863508-LEVER More informationQuantity required : 1 |
|||||||||
|
6 |
864414 - CABLE CIERRE SILLIN TER125 More informationQuantity required : 1 |
|||||||||
|
7 |
00G06801501 - SUPPORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/1/7/img/63617.jpg)
8 |
00002061011 - VIS A TETE CREUSE 6M100X10. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
9 |
WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001 More informationQuantity required : 1 |
|||||||||
|
10 |
865403 - CLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
11 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/3/2/img/65032.jpg)
12 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-00H06300791 More informationQuantity required : 1 |
|||||||||
|
13 |
864036-MANUAL INSTRUCC. TER125 More informationQuantity required : 1 |
|||||||||
|
14 |
864322 - PROTECT.CERRAD.DIRECC.TER125 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
15 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 1 |
|||||||||
|
15 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
15 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/5/img/63635.jpg)
16 |
WASHER MOUNTING DE CYLINDER HEAD OEM PIAGGIO GILERA 50 SMT, RCR, GSM 1998 > 2003/DERBI 50 SENDA 2005 >-00003125280 More informationQuantity required : 1 |
|||||||||
