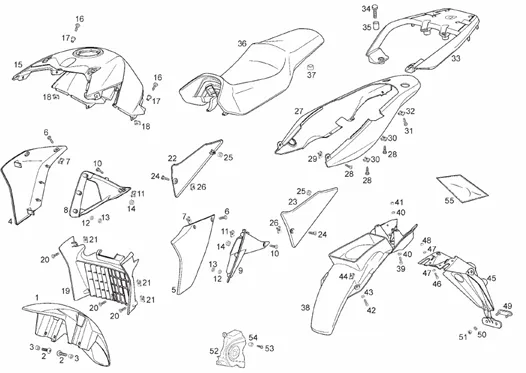

Vehicle Exploded View - DERBI TERRA 125 Terra 125 4T E3 2007-2009 (EMEA)

	P2R reference	189021
	Maker reference	86321800W0N

86321800W0N - GUARDAB.DLNT.NEGRO TER125

	P2R reference	189022
	Maker reference	86323000WN45

86323000WN45-GUARD-MUD AV

	P2R reference	64088
	Maker reference	00G03600991

00G03600991-BOLT SERRAGE TURBINE H. (6X16

	P2R reference	65337
	Maker reference	00N01000821

SPACER/BUSH BODY PANEL REAR OEM PIAGGIO GILERA 50 SMT, RCR 2011 > 2017/DERBI SENDA 2010 > 2017-00N01000821

	P2R reference	189023
	Maker reference	86321600WN15

86321600WN15 - R-TAPA LAT.DLNT.DR.NGR.API.TER125

	P2R reference	189024
	Maker reference	R863217

R863217-COVER

	P2R reference	71973
	Maker reference	AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	189025
	Maker reference	863222

863222-TAPA LAT. INF. DR. DPSTO. TER125

	P2R reference	189026
	Maker reference	863221

863221-TAPA LAT. INF. IZ. DPSTO. TER125

	P2R reference	71973
	Maker reference	AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	71410
	Maker reference	AP8120622

WASHER PLATE (6X12) NYLON FOR FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8120622

	P2R reference	69844
	Maker reference	861239

WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239

	P2R reference	189027
	Maker reference	00H06303771

00H06303771 - TOPE INT.CAREN.GPR RAC.

	P2R reference	189028
	Maker reference	86321900WR55

86321900WR55 - R-CUBRE-DEPSTO.RJO.MADR.TER125

	P2R reference	189029
	Maker reference	86321900WN45

86321900WN45 - RESERVOIR ESSENCE

	P2R reference	189030
	Maker reference	86321900WG75

86321900WG75 - R-CUBRE-DEPSTO.GRS.ALGA.TER125

	P2R reference	189031
	Maker reference	86321900WY35

86321900WY35 - R-CUBRE-DEPSTO.AMAR.JAZ.TER125

	P2R reference	189032
	Maker reference	86321900WG15

86321900WG15 - R-CUBRE-DEPSTO.GRS.PIC.TER125 09

	P2R reference	64544
	Maker reference	00H01503701

SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-00H01503701

	P2R reference	189033
	Maker reference	864109

864109-BUSH

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	189034
	Maker reference	863227

863227-REJILLA RADIADOR TER125

	P2R reference	71973
	Maker reference	AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	189035
	Maker reference	864051

864051 - TAPA LATRL.DR.CAJA FILTRO TER125

	P2R reference	189036
	Maker reference	864052

864052-TAPA LATRL. IZ. CAJA FILTRO TER125

	P2R reference	71973
	Maker reference	AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

	P2R reference	154576
	Maker reference	2B005447

RUBBER GUIDE FIL OEM PIAGGIO COMMON A LA RANGE-2B005447

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	189037
	Maker reference	86322800WG15

86322800WG15 - R-COLIN SILLIN GRS.PIC.TER125 09

	P2R reference	189038
	Maker reference	86322800WY3

86322800WY3 - COLIN SILLIN AMAR.JAZ.TER125

	P2R reference	189039
	Maker reference	86322800WR55

86322800WR55 - R-COLIN SILLIN ROJ.MADR.TER125

	P2R reference	189040
	Maker reference	86322800WN45

86322800WN45 - COUVERCLE

	P2R reference	189041
	Maker reference	86322800WG7

86322800WG7 - COLIN SILLIN GRS.ALGA.TER125

	P2R reference	71973
	Maker reference	AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	63664
	Maker reference	000080615005

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00008061500

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	189042
	Maker reference	86322600WN15

86322600WN15 - R-PORTAPAQ.AGARRAD.NGR.API.TER125

	P2R reference	189043
	Maker reference	863226

863226 - PORTAPAQ.AGARRAD.TER125

	P2R reference	63657
	Maker reference	000060830005

00006083000 - VIS A TETE HEXAGON.AVEC BRIDE

	P2R reference	189044
	Maker reference	864131

864131 - CASQ.FIJ.PORTAPAQ.TER125

	P2R reference	189045
	Maker reference	8632640001

8632640001 - CTO.SILLIN TER125

	P2R reference	189046
	Maker reference	862000

862000 - SILENT BLOCK

	P2R reference	189047
	Maker reference	863223

863223 - GUARDAB.TRASERO TER125

	P2R reference	69497
	Maker reference	847227

SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-847227

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63589
	Maker reference	000000230505

NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-00000023050

	P2R reference	69497
	Maker reference	847227

SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-847227

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	189048
	Maker reference	863224

863224 - SUPLEM.GUARDAB.TRAS.TER125

	P2R reference	69497
	Maker reference	847227

SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-847227

	P2R reference	64840
	Maker reference	00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

	P2R reference	63589
	Maker reference	000000230505

NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-00000023050

	P2R reference	71568
	Maker reference	AP8124718

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	63588
	Maker reference	000000230405

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040

	P2R reference	154421
	Maker reference	863250

863250-TAPA PION SAL. CAMBIO TER125

	P2R reference	64572
	Maker reference	00H01600911

SPACER OEM PIAGGIO COMMON A LA RANGE-00H01600911

	P2R reference	189049
	Maker reference	866609

866609-R-JUEGO CALCAS TERRA ADV. NAR. IRIS 09

	P2R reference	189050
	Maker reference	86394000WG7

86394000WG7 - CTO.KIT CALCAS GRS.ALGA.TERRA 125 4T 07

	P2R reference	189051
	Maker reference	865514

865514 - R-JUEGO CALCAS TERRA 125CC AMARILLO JAZ

	P2R reference	189052
	Maker reference	86394000WR5

86394000WR5-CTO. KIT CALCAS RJO. MADR. TERRA 125 4T 07
