Vehicle Exploded View - MOTO-GUZZI STELVIO 1000 E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

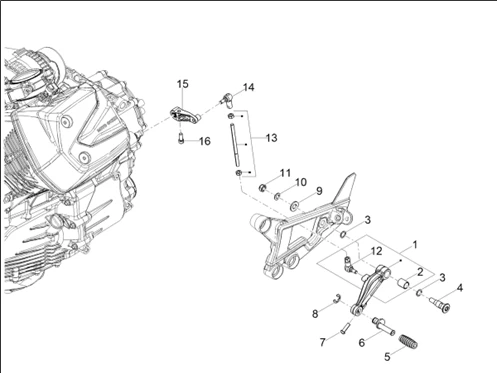

Moteur : 03.02 SÉLECTEURS INTERNES DE LA BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1213/Stelvio_E5_ABS_2024_EMEA_03.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/8/4/9/3/img/208493.jpg)
1 |
GEAR LEVER OEM MOTO GUZZI STELVIO 2024 >-2B012412 More informationQuantity required : 1 |
|||||||||
2 |
895328-BUSSOLA SINTERIZZATA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
3 |
O-RING (11, 11X1, 78) OEM PIAGGIO COMMON A LA RANGE-AP8144007 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/5/7/7/5/img/215775.jpg)
4 |
PIVOT/SCREW OF PEDAL OF BRAKE REAR OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-2B012762 More informationQuantity required : 1 |
|||||||||
|
4 |
REAR BRAKE PEDAL PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -884033 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
5 |
RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/2/img/71452.jpg)
6 |
ROD BRAKE LEVER REAR OEM PIAGGIO FOR MOTORCYCLE-GUZZI STELVIO 2024, 850-1200 NORGE, BREVA, 1200 SPORT/ROD SELECTEUR DE VITESSES RANGE MOTO APRILIA-AP8121221 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/0/img/72330.jpg)
7 |
SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/1/img/71891.jpg)
8 |
CLIPS/CIRCLIPS DIAMETRE 9MM OEM PIAGGIO COMMON A LA RANGE-AP8150462 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
9 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
10 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
11 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150431 More informationQuantity required : 1 |
|||||||||
|
12 |
2B004822-ROTULE More informationQuantity required : 1 |
|||||||||
|
13 |
2B004704-TIRANT More informationQuantity required : 1 |
|||||||||
|
14 |
898396-ROTULE More informationQuantity required : 1 |
|||||||||
|
15 |
2B011144-GEARSHIFT CONTROL LEVER More informationQuantity required : 1 |
|||||||||
|
16 |
2B011110-HSCH M6X20 PARTIAL THREADED WITH LOCKER More informationQuantity required : 1 |
|||||||||
