Vehicle Exploded View - MOTO-GUZZI STELVIO 1000 E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

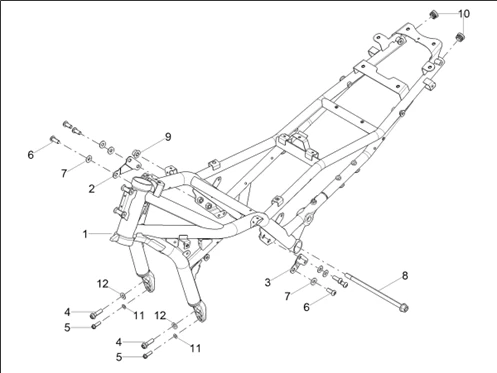

Châssis/coque : 01.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1213/Stelvio_E5_ABS_2024_EMEA_01.01.png)
1 |
2B010121000N20-FRAME More informationQuantity required : 1 |
||||||
|
2 |
2B012515000N20-PLATE RIGHT More informationQuantity required : 1 |
||||||
|
3 |
2B012514000N20-PLATE LEFT More informationQuantity required : 1 |
||||||
|
4 |
2B010830-SCREW FLANGE More informationQuantity required : 2 |
||||||
|
5 |
2B010900-SCREW FLANGE More informationQuantity required : 2 |
||||||
|
6 |
2B009930-TORX SOCKET BUTTON HEAD SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
7 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 6 |
||||||
|
8 |
2B008389-FRAME PIVOT PIN M12X243 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
9 |
NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740 More informationQuantity required : 1 |
||||||
|
10 |
2B012444-CAP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
11 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/0/img/71840.jpg)
12 |
WASHER ELASTIC COURBE (11X21X1) OEM PIAGGIO COMMON A LA RANGE-AP8150210 More informationQuantity required : 2 |
