Vehicle Exploded View - MOTO-GUZZI STELVIO 1000 E5+ ABS 2024 (EMEA) MOTO-GUZZI

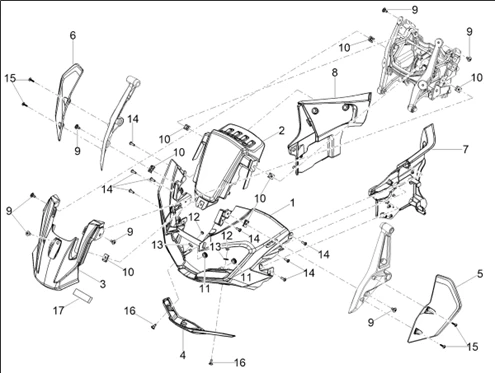

Carrosserie : 02.04 AVANT CARÈNE
Avant carène
Search
CAPOT/FRONT PANEL FRONT OEM MOTO GUZZI STELVIO 2024-2B010176

1
P2R reference P2R reference 208421
Maker reference Maker reference 2B010176

CAPOT/FRONT PANEL FRONT OEM MOTO GUZZI STELVIO 2024-2B010176

More information

Quantity required : 1

2B010890 - UPPER FRONT COVER

2
P2R reference P2R reference 208422
Maker reference Maker reference 2B010890

2B010890-UPPER FRONT COVER

More information

Quantity required : 1

2B010177 - FRONT COVER

3
P2R reference P2R reference 208423
Maker reference Maker reference 2B010177

2B010177-FRONT COVER

More information

Quantity required : 1

2B010175 - DéFLECTEUR AVANT

4
P2R reference P2R reference 208424
Maker reference Maker reference 2B010175

2B010175-DÃ - FLECTEUR FRONT

More information

Quantity required : 1

DEFLECTOR LEFT OEM MOTO GUZZI STELVIO 2024-2B011331

5
P2R reference P2R reference 208425
Maker reference Maker reference 2B011331

DEFLECTOR LEFT OEM MOTO GUZZI STELVIO 2024-2B011331

More information

Quantity required : 1

DEFLECTOR RIGHT OEM MOTO GUZZI STELVIO 2024-2B011332

6
P2R reference P2R reference 208426
Maker reference Maker reference 2B011332

DEFLECTOR RIGHT OEM MOTO GUZZI STELVIO 2024-2B011332

More information

Quantity required : 1

2B010179 - LH INTERNAL COVER

7
P2R reference P2R reference 208427
Maker reference Maker reference 2B010179

2B010179-LH INTERNAL COVER

More information

Quantity required : 1

2B010180 - RH INTERNAL COVER

8
P2R reference P2R reference 208428
Maker reference Maker reference 2B010180

2B010180-RH INTERNAL COVER

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

9
P2R reference P2R reference 71894
Maker reference Maker reference AP8150500

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

More information

Quantity required : 7

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

10
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 7

RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8220186

11
P2R reference P2R reference 56838
Maker reference Maker reference AP8220186

RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8220186

More information

Quantity required : 2

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

12
P2R reference P2R reference 71963
Maker reference Maker reference AP81523066

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

More information

Quantity required : 2

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150248

13
P2R reference P2R reference 71844
Maker reference Maker reference AP8150248

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150248

More information

Quantity required : 2

SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509

14
P2R reference P2R reference 71897
Maker reference Maker reference AP8150509

SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509

More information

Quantity required : 8

SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701

15
P2R reference P2R reference 73372
Maker reference Maker reference CM180701

SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701

More information

Quantity required : 4

2B009423 - M5X12 TORX SCREW

16
P2R reference P2R reference 184721
Maker reference Maker reference 2B009423

2B009423 M5X12 TORX SCREW

More information

Quantity required : 2

2B012711 - EPONGE ADHéSIVE

17
P2R reference P2R reference 208429
Maker reference Maker reference 2B012711

2B012711-EPONGE ADHÃ - SIVE

More information

Quantity required : 1
