Vehicle Exploded View - MOTO-GUZZI STELVIO 1000 E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

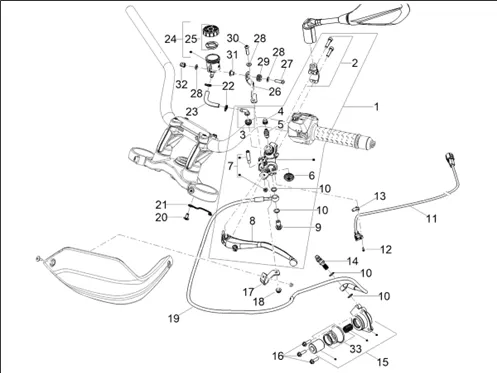

Guidon - commandes : 07.03 COMMANDE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1213/Stelvio_E5_ABS_2024_EMEA_07.03.png)
1 |
2B008780-CLUTCH LEVER PUMP More informationQuantity required : 1 |
|||||||||
|
2 |
2B010032-FRONT MASTER CYLINDER CLAMP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.jpg)
3 |
FITTING OF PUMP BRAKE REAR OEM APRILIA/MOTO-GUZZI COMMON A LA RANGE-AP8213057 More informationQuantity required : 1 |
|||||||||
|
4 |
AP8113230-CAPUCHON RENIFLARD More informationQuantity required : 1 |
|||||||||
|
5 |
AP8133502-PURGE AIR More informationQuantity required : 1 |
|||||||||
|
6 |
2B007074 DUST COVER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/6/1/img/71661.jpg)
7 |
STUD BRAKE MASTER CYLINDER OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4, 1100 TUONO-AP8133666 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/7/1/8/img/203718.jpg)
8 |
LEVER CLUTCH OEM MOTO GUZZI V100 2022 >, STELVIO 2024 >-2B009608 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/5/5/img/127555.jpg)
9 |
1C002059R - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
10 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
|||||||||
|
11 |
2D000803-INTERRUPTEUR D'EMBRAYAGE More informationQuantity required : 1 |
|||||||||
|
12 |
2B010680-M3X12 CYL. HEAD SCREW + FLAT WASHER More informationQuantity required : 1 |
|||||||||
|
13 |
2B011334-PLATE More informationQuantity required : 1 |
|||||||||
|
14 |
AP8133945-KIT SPURGO ANT More informationQuantity required : 1 |
|||||||||
|
15 |
2B013140-CYLINDER COMM. EMBR. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
16 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 3 |
|||||||||
|
17 |
2B010985-FLANGE OF FITTING KIT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
18 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 1 |
|||||||||
|
19 |
2B010856-HOSE CLUTCH More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/4/9/2/img/142492.jpg)
20 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-2B004031 More informationQuantity required : 1 |
|||||||||
|
21 |
2B010991-GUIDE-CÃ - BLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
22 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 1 |
|||||||||
|
23 |
2B009459-CLUTCH LEVER TANK OIL MANIFOLD More informationQuantity required : 1 |
|||||||||
|
24 |
2B009678-SMOKED OIL TANK ASSEMBLY More informationQuantity required : 1 |
|||||||||
|
25 |
2B010030-OIL TANK CAP More informationQuantity required : 1 |
|||||||||
|
26 |
2B010981-BRACKET RÃ - SERV. OIL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
27 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/3/img/71833.JPG)
28 |
WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
29 |
GUIDE CABLE (8X10X16) OEM PIAGGIO COMMON A TOUTE LA RANGE-487665 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
30 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117 More informationQuantity required : 1 |
|||||||||
|
31 |
2B010853-FLANGED SPACER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/4/img/66574.jpg)
32 |
NUT M6 BORGNE OEM PIAGGIO COMMON A LA RANGE-479175 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/8/6/5/4/img/208654.jpg)
33 |
KIT REVISION CLUTCH OEM PIAGGIO MOTO-GUZZI STELVIO E5, V100-2B013145 More informationQuantity required : 1 |
|||||||||
