Vehicle Exploded View - MOTO-GUZZI STELVIO 1000 E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

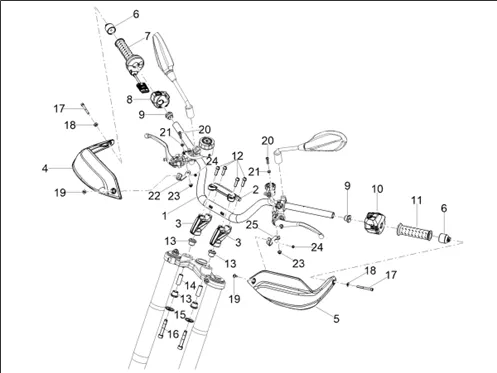

Guidon - commandes : 07.02 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1213/Stelvio_E5_ABS_2024_EMEA_07.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/8/6/4/0/img/208640.jpg)
1 |
HANDLEBAR MOTO OEM PIAGGIO MOTO-GUZZI STELVIO 2024-2B010977 More informationQuantity required : 1 |
||||||
2 |
2B011905 - CAVALIER GUIDON More informationQuantity required : 1 |
||||||
|
3 |
2B011460-CAVALIER INF. More informationQuantity required : 2 |
||||||
|
4 |
PROTEGE MAIN RIGHT OEM PIAGGIO MOTO-GUZZI STELVIO 2024-2B010565 More informationQuantity required : 1 |
||||||
|
5 |
PROTEGE MAIN LEFT OEM PIAGGIO MOTO-GUZZI STELVIO 2024-2B010563 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/7/2/9/img/40729.jpg)
6 |
HANDLEBAR END OEM PIAGGIO APRILIA 1200 CAPONORD 2014 >, 750-900-1200 DORSODURO 2008 >/MOTO-GUZZI 850 V85 2019 > STELVIO 2024 >-859949 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/3/img/145823.jpg)
7 |
CONTROL/THROTTLE GRIP ELECTRONIC OEM APRILIA 1000-1100 RSV4 2017 >, 660 RS, TUONO 2020 >, 900 DORSODURO, SHIVER/MOTO GUZZI V100, V85 E4-2D000095 More informationQuantity required : 1 |
||||||
|
8 |
DEVIATEUR/CONTACTEUR FEUX RIGHT OEM PIAGGIO APRILIA 660 TUAREG 2021 >, MOTO GUZZI STELVIO ARAS/V100 2022 >-2D000552 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/1/img/71471.jpg)
9 |
CAP DE HANDLEBAR OEM PIAGGIO COMMON A LA RANGE MOTO-AP8121520 More informationQuantity required : 2 |
||||||
|
10 |
DEVIATEUR/CONTACTEUR FEUX LEFT OEM PIAGGIO APRILIA 660 TUAREG 2021 >, MOTO GUZZI STELVIO ARAS/V100 2022 >-2D000549 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/6/img/71366.jpg)
11 |
REVETEMENT DE GRIP LEFT OEM APRILIA/MOTO GUZZI COMMUNA LAGAMME-AP8118579 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
12 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/4/0/img/51040.jpg)
12 |
SCREW BTR CHROME (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152486 More informationQuantity required : 4 |
||||||
|
13 |
2B012779-RUBBER More informationQuantity required : 4 |
||||||
|
14 |
2B012782-SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/6/3/img/108963.jpg)
15 |
WASHER SPECIALE DE HANDLEBAR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8123721 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/9/4/3/img/155943.jpg)
16 |
SCREW BTR (10X60) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004798 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.jpg)
17 |
SCREW BTR (6X55) OEM PIAGGIO COMMON A LA RANGE-AP8150045 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
18 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
19 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
20 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/3/img/71833.JPG)
21 |
WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178 More informationQuantity required : 2 |
||||||
|
22 |
2B010986-FLANGE OF FITTING KIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
23 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
24 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 2 |
||||||
|
25 |
2B010985-FLANGE OF FITTING KIT More informationQuantity required : 1 |
