Vehicle Exploded View - MOTO-GUZZI STELVIO 1000 E5+ ABS 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

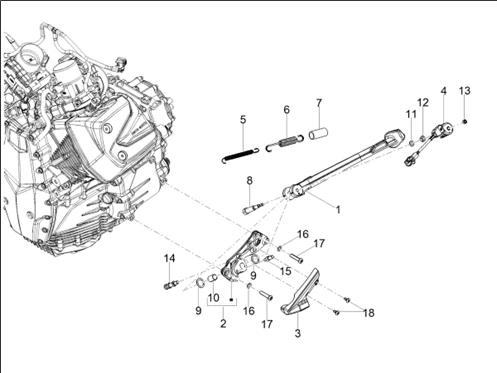

Châssis/coque : 01.03 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1213/Stelvio_E5_ABS_2024_EMEA_01.03.png)
1 |
SIDE STAND OEM PIAGGIO MOTO-GUZZI STELVIO 2024-2B010485 More informationQuantity required : 1 |
||||||
|
2 |
2B011138-PLATE BRACKET More informationQuantity required : 1 |
||||||
|
3 |
2B010213-SIDE STAND SENSOR CABLE CASING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/0/0/img/171500.jpg)
4 |
CONTACTEUR DE STAND OEM APRILIA 660 RS, TUONO, TUAREG 2020 >-1100 RSV4, TUONO V4 2021 >/MOTO GUZZI V85 E5 2021 >-V100 2022 >-2D000530 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/4/img/72304.jpg)
5 |
SPRING INTERNE RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221211 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/3/img/72303.jpg)
6 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO-AP8221204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
7 |
PROTECTOR SPRING DE SIDE STAND OEM PIAGGIO COMMON A LA RANGE-AP8102524 More informationQuantity required : 1 |
||||||
|
8 |
2B010503-SIDE STAND PIVOT More informationQuantity required : 1 |
||||||
|
9 |
2B010499-SHIM More informationQuantity required : 2 |
||||||
|
10 |
2B010570-SELF-LUBRICATING BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
11 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/7/img/50827.jpg)
12 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150027 More informationQuantity required : 1 |
||||||
|
13 |
AP8150269-Ã - CROU More informationQuantity required : 1 |
||||||
|
14 |
2B010284-SIDE STAND PIN More informationQuantity required : 1 |
||||||
|
15 |
2B010283-THREADED PIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/6/img/71896.jpg)
16 |
WASHER SPRING (8X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150502 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/2/img/67372.jpg)
17 |
SCREW TORX (8X30) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-599208 More informationQuantity required : 2 |
||||||
|
18 |
2B003422-SCREW More informationQuantity required : 2 |
