Vehicle Exploded View - APRILIA SR 125 SR COMPACT GT 125 CBS E5 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

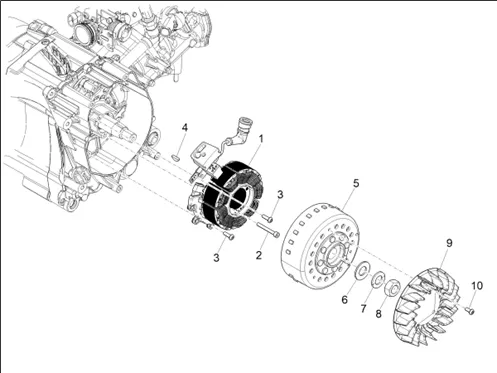

Moteur : 03.30 VOLANT MAGNÉTIQUE / ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1328/SR_COMPACT_GT_125_CBS_E5_2021-2023_EMEA_03.30.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/7/5/img/162775.jpg)
1 |
STATOR COMPLETE OEM PIAGGIO 125-150 MEDLEY/VESPA GTS 2016 >-1A013291 More informationQuantity required : 1 |
||||||
2 |
1A005637-SCREW More informationQuantity required : 3 |
||||||
|
3 |
1A003477-SCREW More informationQuantity required : 7 |
||||||
|
4 |
B015997 - CLAVETTE More informationQuantity required : 1 |
||||||
|
5 |
1A006220-ROTOR COMPLETE More informationQuantity required : 1 |
||||||
|
6 |
1A003712-WASHER More informationQuantity required : 1 |
||||||
|
7 |
B018464-WASHER More informationQuantity required : 1 |
||||||
|
8 |
NUT IGNITION (M16X1. 25) OEM PIAGGIO 125 FLY, LIBERTY, VESPA LX, PRIMAVERA, SPRINT-B015996 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/6/0/6/img/139606.jpg)
9 |
TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 125 MEDLEY, GTS 2016 >/125 SR GT COMPACT 2021 > APRILIA-1A006071 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/5/8/0/img/139580.jpg)
10 |
SCREW TORX (5X12) OEM PIAGGIO COMMON A LA RANGE-1A004975 More informationQuantity required : 3 |
