Vehicle Exploded View - APRILIA SR 125 SR COMPACT GT 125 CBS E5 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

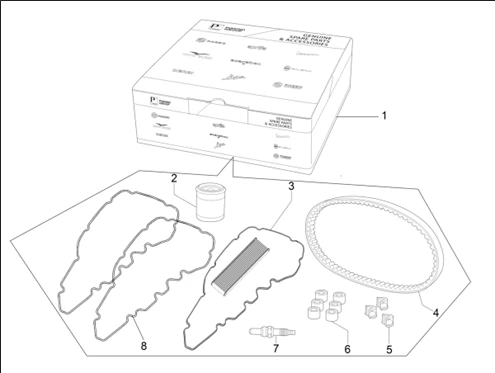

Maintenance : 12.01 WEAR AND MAINTENANCE KIT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1328/SR_COMPACT_GT_125_CBS_E5_2021-2023_EMEA_12.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/2/2/8/img/204228.jpg)
1 |
KIT ENTRETIEN MAXI SCOOTER OEM APRILIA 125 SR GT COMPACT 2021 > (WITHOUT BRAKE PADS)-1R000585 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/0/6/4/9/img/210649.jpg)
2 |
OIL FILTER MAXI SCOOTER OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS-1A022356 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/8/7/img/162787.jpg)
3 |
AIR FILTER OEM PIAGGIO 125 MEDLEY 2020 >, 125-200 SR GT COMPACT 2021 >-1A016566 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/6/5/img/162765.jpg)
4 |
DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 MEDLEY 2016 >, 125 VESPA GTS 2016 > APRILIA 125 SR GT COMPACT 2021 >-1A011455 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/3/8/7/1/img/203871.jpg)
5 |
GUIDE/PATIN DE VARIATOR OEM PIAGGIO 125 MEDLEY 2016 > 2020/SR GT COMPACT APRILIA 2021 >, VESPA GTS 2016 >-1A015664 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/8/0/8/img/195808.jpg)
6 |
GALET/ROLLER OEM PIAGGIO 125 SR GT COMPACT APRILIA/VESPA GTS/LX/946 (SOLD INDIVIDUALLY)-CM308502 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/9/1/img/195791.jpg)
7 |
SPARK PLUG IRIDIUM LMAR8AI-8 OEM PIAGGIO 125 GTS VESPA 2022 >/125-200 SR GT COMPACT 2021 >-1A020263 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/8/8/img/162788.jpg)
8 |
GASKET COVER FLTRE A AIR ORIGNIE PIAGGIO 125 MEDLEY 2020 >/SR GT COMPACT APRILIA 2021 >-1A013599 More informationQuantity required : 2 |
