Vehicle Exploded View - APRILIA SR 125 SR COMPACT GT 125 CBS E5 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

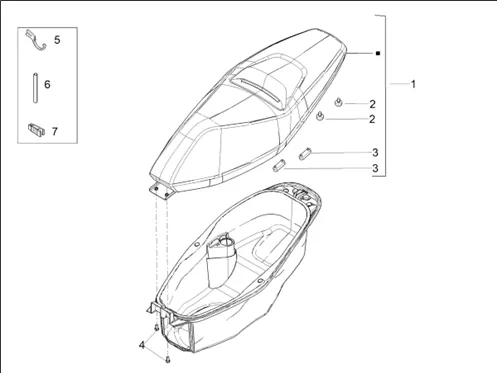

Carrosserie : 02.12 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1328/SR_COMPACT_GT_125_CBS_E5_2021-2023_EMEA_02.12.png)
1 |
1B008118000C1-COMPLETE SADDLE More informationQuantity required : 1 |
||||||
|
1 |
1B008118000C3 - COMPLETE SADDLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
2 |
BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
3 |
BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
4 |
SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086 More informationQuantity required : 2 |
||||||
|
5 |
1C005786-SHOCK ABSORBER WRENCH More informationQuantity required : 1 |
||||||
|
6 |
1C005891-LEVER FOR SHOCK ABSORBER WRENCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/7/7/img/140377.jpg)
7 |
EXTRACTEUR/PINCE FOR FUSIBLES OEM PIAGGIO COMMON A LA RANGE-584654 More informationQuantity required : 1 |
