Vehicle Exploded View - APRILIA SR 125 SR COMPACT GT 125 CBS E5 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

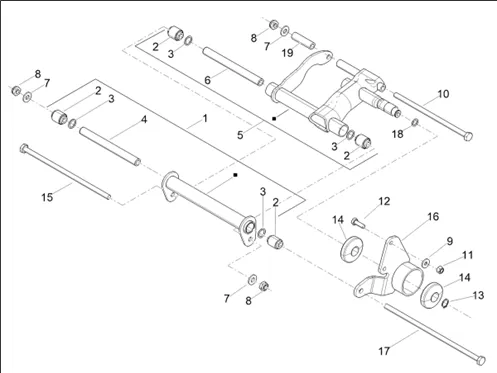

Châssis/coque : 01.05 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1328/SR_COMPACT_GT_125_CBS_E5_2021-2023_EMEA_01.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/6/8/0/img/195680.jpg)
1 |
OEM MOPED SWINGARM COTE CADRE COMPLETE OEM APRILIA 125 SR GT COMPACT 2021 >-1C005855 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
2 |
RUBBER MOUNT DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-486081 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/8/0/img/73680.jpg)
3 |
O-RING (16X21X2. 5) OEM PIAGGIO COMMON A LA RANGE-006721 More informationQuantity required : 4 |
||||||
4 |
CM272207-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/6/8/2/img/195682.jpg)
5 |
OEM MOPED SWINGARM COTE ENGINE OEM APRILIA 125-200 SR GT COMPACT 2021 >-1C005531 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/6/8/4/img/140684.jpg)
6 |
SPACER OEM MOPED SWINGARM OEM COMMON A LA RANGE PIAGGIO-CM272201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
7 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
8 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
9 |
WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861 More informationQuantity required : 4 |
||||||
|
10 |
598237-SCREW More informationQuantity required : 1 |
||||||
|
11 |
709052 NUT More informationQuantity required : 2 |
||||||
|
12 |
1C001844-BOLT More informationQuantity required : 2 |
||||||
|
13 |
1C002625-CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/2/8/2/img/149282.jpg)
14 |
RUBBER MOUNT ENGINE OEM PIAGGIO COMMON A LA RANGE-1C002624 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/2/img/67042.jpg)
15 |
SPINDLE/SCREW OEM MOPED SWINGARM OEM PIAGGIO 50-125 FLY, LIBERTY, 50 TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD-563977 More informationQuantity required : 1 |
||||||
|
16 |
1C005101-SILENT BLOC BRACKET WITH I. P. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/1/0/img/146210.jpg)
17 |
SPINDLE/SCREW OEM MOPED SWINGARM OEM PIAGGIO 50 LIBERTY 2015 >/50 SXR APRILIA 2021 >-597043 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/1/7/img/68917.jpg)
18 |
O-RING (14. 6X20. 8X3. 4) OEM PIAGGIO COMMON A LA RANGE-830434 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/6/4/img/82464.jpg)
19 |
SPACER OEM MOPED SWINGARM OEM APRILIA 125 SR GT 2021 >-599077 More informationQuantity required : 1 |
