Vehicle Exploded View - APRILIA SR 125 SR COMPACT GT 125 CBS E5 2021-2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

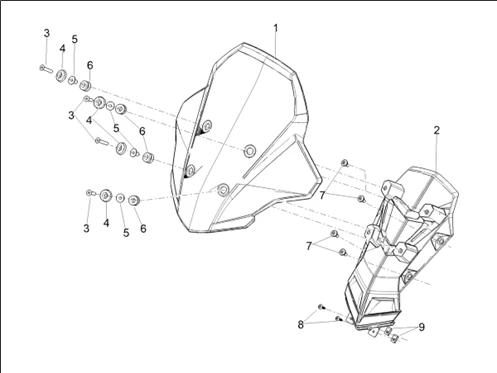

Carrosserie : 02.05 COUPOLE / PARE BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1328/SR_COMPACT_GT_125_CBS_E5_2021-2023_EMEA_02.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/6/8/5/img/195685.jpg)
1 |
WINDSCREEN MONTE DE SERIE OEM APRILIA 125 SR GT COMPACT 2021 >-1B008119 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/6/8/6/img/195686.jpg)
2 |
PROTECTOR SUPERIEURE DE LEG SHIELD OEM APRILIA 125 SR GT COMPACT 2021 >-1B009273 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/1/5/2/img/177152.jpg)
3 |
SCREW TORX (6X30) OEM PIAGGIO COMMON A LA RANGE-1B006381 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/5/6/4/img/91564.jpg)
4 |
BUSH PROTECTOR-SCREEN OEM PIAGGIO 125-250-300-350-400-500 MP3 2008 > 2014-674070 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/5/6/3/img/91563.jpg)
5 |
SPACER DE WINDSCREEN OEM PIAGGIO 125-250-300-350-400-500-530 MP3-674068 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/4/img/67134.jpg)
6 |
GUIDE-CABLE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-576565 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
7 |
SCREW TORX (6X16) WITH EPAULEMENT OEM PIAGGIO COMMON A LA RANGE-CM179202 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/9/img/73359.jpg)
8 |
SCREW TORX (4. 2X21. 5) TARAUD DE FAIRING OEM PIAGGIO COMMON A LA RANGE-CM178604 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
9 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 2 |
