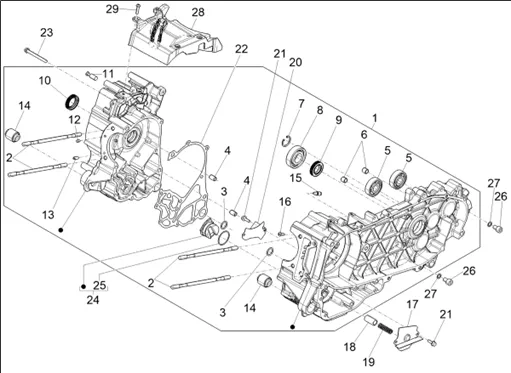

Moteur : 03.03 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1328/SR_COMPACT_GT_125_CBS_E5_2021-2023_EMEA_03.03.png)
1 |
CM31880101-CASING COMPLETE 1E CAT. More informationQuantity required : 1 |
||||||
|
1 |
CM31880102 - CARTER COMPLET 2E CAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/1/4/img/127214.jpg)
2 |
STUD DE CYLINDER OEM PIAGGIO 125-150 LIBERTY, MEDLEY, PRIMAVERA, SPRINT, LX 2013 >-1A001406 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
3 |
GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE-273754 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
4 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/8/4/7/img/92847.jpg)
5 |
BEARING (15X42X13) RADIAL ENSEMBLE REDUCTEUR OEM COMMON A LA RANGE PIAGGIO-83026R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
6 |
PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/9/img/72699.jpg)
7 |
CLIPS/CIRCLIPS (25X26, 9X1, 2) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015959 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/8/4/8/img/92848.jpg)
8 |
BEARING (22X50X14) OEM PIAGGIO COMMON A LA RANGE-83027R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/6/0/2/img/139602.jpg)
9 |
OIL SEAL (20X35X7) OEM PIAGGIO COMMON A LA RANGE-1A005746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/6/0/1/img/139601.jpg)
10 |
OIL SEAL (24X35X7) OEM PIAGGIO COMMON A LA RANGE-1A005745 More informationQuantity required : 1 |
||||||
|
11 |
B015436-STAND SPRING PIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/9/img/66669.jpg)
12 |
BUSH DE CENTRAGE (5X8) OEM PIAGGIO COMMON A LA RANGE-484993 More informationQuantity required : 1 |
||||||
|
13 |
1A001364-GICLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/4/6/img/149146.jpg)
14 |
RUBBER MOUNT CASING ENGINE OEM PIAGGIO 50 ZIP, LIBERTY, PRIMAVERA 2021 >/125 LIBERTY, MEDLEY, GTS 2016 >/125 SR GT APRILA 2021 >-1A008919R More informationQuantity required : 2 |
||||||
|
15 |
1A002024-GICLEUR More informationQuantity required : 1 |
||||||
|
16 |
1A005607-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/4/9/img/94549.jpg)
17 |
CLOISON OIL CASING ENGINE OEM PIAGGIO 125 FLY, LIBERTY, MEDLEY, GTS 2013 >-B014134 More informationQuantity required : 1 |
||||||
|
18 |
1A021814R-VALVE RÃ - GLAGE PRESSION OIL More informationQuantity required : 1 |
||||||
|
19 |
B015431-SPRING More informationQuantity required : 1 |
||||||
|
20 |
B014135-PANEL SUPERIEURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
21 |
SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/7/8/img/139478.jpg)
22 |
GASKET HALF CASING OEM PIAGGIO 125 MEDLEY, GTS 2016 >/APRILIA 125 SR GT 2021 >-1A001115 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
23 |
SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425 More informationQuantity required : 11 |
||||||
|
24 |
B015430-BRACKET FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/8/img/66388.jpg)
25 |
O-RING INSERT DOOR FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-431065 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
26 |
SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755 More informationQuantity required : 2 |
||||||
|
27 |
B015954 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/7/4/5/img/162745.jpg)
28 |
DUCT AIR OEM PIAGGIO 125 MEDLEY/SR GT COMPACT APRILIA 2020 >-1A014697 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/3/img/72733.jpg)
29 |
SCREW TORX (5X20) OEM PIAGGIO COMMON A LA RANGE-B016808 More informationQuantity required : 4 |
