Vehicle Exploded View - APRILIA SR 50 H20 Ditech E2 02-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

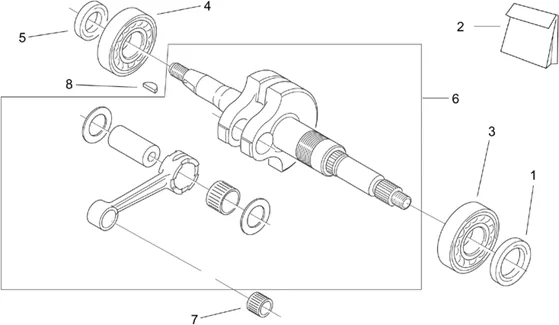

Moteur : 29.39 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/574/SR_50_H20_Ditech_E2_02-04_29.39.PNG)
1 |
AP3EBN000183 - JOINT SPI More informationQuantity required : 1 |
||||||
|
2 |
AP5RZR000099 - JOINT SPY-SERIE; More informationQuantity required : 1 |
||||||
|
3 |
AP2GAN000219-BEARING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/7/8/8/img/114788.jpg)
4 |
BEARING (20X47X14) VILLEBREQUIN OEM PIAGGIO APRILIA 50 MOJITO, SR, SCARABEO-090131 More informationQuantity required : 1 |
||||||
|
5 |
AP3EBN000180 - JOINT SPI More informationQuantity required : 1 |
||||||
|
6 |
AP1BFA000699 - ALBERO MOTORE More informationQuantity required : 1 |
||||||
|
7 |
Cage à rouleaux |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
8 |
CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267 More informationQuantity required : 1 |
