Vehicle Exploded View - APRILIA SR 50 H20 Ditech E2 02-04 APRILIA

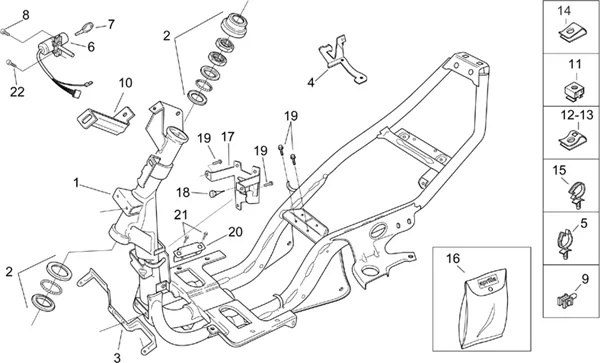

Chassis : 28.01 CHASSIS
Chassis
Search
AP8235123 - CADRE =8235069

1
P2R reference P2R reference 58150
Maker reference Maker reference AP8235123

AP8235123 - CADRE =8235069

More information

Quantity required : 1

AP8203666 - SERIE DIRECTION COMPLETE

2
P2R reference P2R reference 55540
Maker reference Maker reference AP8203666

AP8203666 - SERIE DIRECTION COMPLETE

More information

Quantity required : 1

AP8234191 - SUPPORT SOUS-REPOSE-PIEDS;

3
P2R reference P2R reference 58082
Maker reference Maker reference AP8234191

AP8234191 - SUPPORT SOUS-REPOSE-PIEDS;

More information

Quantity required : 1

AP8234189 - SUPP. POMPE HUILE;

4
P2R reference P2R reference 58080
Maker reference Maker reference AP8234189

AP8234189 - SUPP. POMPE HUILE;

More information

Quantity required : 1

AP8221311 - PASSE-CABLE

5
P2R reference P2R reference 57053
Maker reference Maker reference AP8221311

AP8221311-GUIDE-CABLE

More information

Quantity required : 2

AP8224343 - BLOC DEMARREUR-BLOC;

6
P2R reference P2R reference 57361
Maker reference Maker reference AP8224343

AP8224343-BLOC STARTER MOTOR-BLOC

More information

Quantity required : 1

EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613

7
P2R reference P2R reference 45423
Maker reference Maker reference AP8104613

EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613

More information

Quantity required : 1

SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140

8
P2R reference P2R reference 71919
Maker reference Maker reference AP8152140

SCREW A ARRACHEMENT/AUTO-CASSANTE TH (6X17) OEM PIAGGIO COMMON A LA RANGE-AP8152140

More information

Quantity required : 1

AP8202238 - ANCRAGE GUIDE-CABLE;

9
P2R reference P2R reference 72152
Maker reference Maker reference AP8202238

AP8202238-ANCRAGE GUIDE-CABLE

More information

Quantity required : 1

AP8234130 - SUPPORT TABLIER AVANT;

10
P2R reference P2R reference 58056
Maker reference Maker reference AP8234130

AP8234130-BRACKET LEG SHIELD FRONT

More information

Quantity required : 1

NUT EN CAGE M6 OEM PIAGGIO COMMON A LA RANGE-AP8221213

11
P2R reference P2R reference 57021
Maker reference Maker reference AP8221213

NUT EN CAGE M6 OEM PIAGGIO COMMON A LA RANGE-AP8221213

More information

Quantity required : 2

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

12
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 9

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

13
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 4

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

14
P2R reference P2R reference 72143
Maker reference Maker reference AP8201763

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

More information

Quantity required : 3

AP8221310 - PASSE-CABLE

15
P2R reference P2R reference 72315
Maker reference Maker reference AP8221310

AP8221310-GUIDE-CABLE

More information

Quantity required : 2

AP8202216 - TROUSSE A OUTILS;

16
P2R reference P2R reference 55449
Maker reference Maker reference AP8202216

AP8202216-TROUSSE A OUTILS

More information

Quantity required : 1

AP8234184 - PLAQUE FIX. CENTRALE;

17
P2R reference P2R reference 58079
Maker reference Maker reference AP8234184

AP8234184-PLATE FIX. CENTRE

More information

Quantity required : 1

RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220238

18
P2R reference P2R reference 72275
Maker reference Maker reference AP8220238

RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220238

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

19
P2R reference P2R reference 151683
Maker reference Maker reference AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

More information

Quantity required : 4

AP8234190 - PLAQUE FIX. BOBINE;

20
P2R reference P2R reference 58081
Maker reference Maker reference AP8234190

AP8234190 - PLAQUE FIX. BOBINE;

More information

Quantity required : 1

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

21
P2R reference P2R reference 71941
Maker reference Maker reference AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

More information

Quantity required : 3

WASHER ELASTIC COURBE (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150272

22
P2R reference P2R reference 97084
Maker reference Maker reference AP8150272

WASHER ELASTIC COURBE (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150272

More information

Quantity required : 1
