Vehicle Exploded View - APRILIA SR 50 H20 Ditech E2 02-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

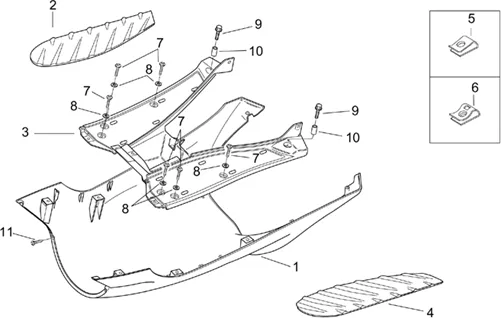

Chassis : 28.10 CARROSSERIE CENTRALE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/574/SR_50_H20_Ditech_E2_02-04_28.10.PNG)
1 |
AP8258485 - SOUS-REP-PIEDS, ROUGE More informationQuantity required : 1 |
||||||
|
1 |
AP8258552 - SOUS-REP-PIEDS NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8258703 - SOTTOPIANALE ROSSO FLUO More informationQuantity required : 1 |
||||||
|
1 |
AP8258784 - SOUS-REP-PIEDS; More informationQuantity required : 1 |
||||||
|
1 |
AP8258812-SOUS-REP-FEET More informationQuantity required : 1 |
||||||
|
1 |
AP8258825 - SOUS-REP-PIEDS; More informationQuantity required : 1 |
||||||
|
1 |
AP8258832 - SOUS-REP-PIEDS; More informationQuantity required : 1 |
||||||
|
1 |
AP8258846 - SOUS-REP-PIEDS; More informationQuantity required : 1 |
||||||
|
1 |
AP8268215-SOTTOPIANALE GREY PIOMBO More informationQuantity required : 1 |
||||||
|
1 |
AP8268220 - SOTTOPIANALE GRIGIO MAGNET More informationQuantity required : 1 |
||||||
|
1 |
AP8268247-SOTTOPIANALE NERO More informationQuantity required : 1 |
||||||
|
2 |
AP8248665 - TAPIS D NOIR; More informationQuantity required : 1 |
||||||
|
3 |
AP8249892 - PLANCHER REPOSE-PIEDS NOIR; More informationQuantity required : 1 |
||||||
|
4 |
AP8248666-MAT G BLACK * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
6 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/1/img/71881.jpg)
7 |
SCREW PARKER (5, 5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150425 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
8 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
9 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
||||||
|
10 |
AP8221046 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
11 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 8 |
