Vehicle Exploded View - APRILIA SR 50 H20 Ditech E2 02-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

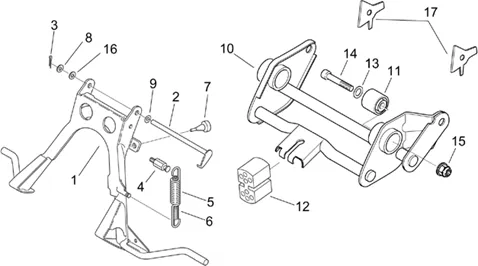

Chassis : 28.02 BEQUILLE - BIELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/574/SR_50_H20_Ditech_E2_02-04_28.02.PNG)
1 |
AP8235116 - BEQUILLE CENTRALE More informationQuantity required : 1 |
||||||
|
2 |
AP8221328 - AXE DE BEQUILLE More informationQuantity required : 1 |
||||||
|
3 |
AP8101606 - GOUPILLE More informationQuantity required : 1 |
||||||
|
4 |
AP8221323-SCREW ACCROCHAGE SPRING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/6/img/72316.jpg)
5 |
AP8221317-SPRING RAPPEL BEQ. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/7/img/72317.jpg)
6 |
SPRING DE STAND INNER OEM MOTO GUZZI BREVA, NORGE-AP8221318 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/5/img/72275.jpg)
7 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220238 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
8 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
9 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 1 |
||||||
|
10 |
AP8235110-BIELLETTE MOUNTING ENGINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/0/img/72280.jpg)
11 |
SILENTBLOC FOR EXHAUST/OR SUSPENSION ARM "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 GRISO, STELVIO/APRILIA 125 LEONARDO, 50 SCARABEO 2 STROKE -AP8220346- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/7/6/img/56876.jpg)
12 |
BUFFER DE CALAGE STAND OEM PIAGGIO 50 SR APRILIA 1993 >-AP8220399 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
13 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 2 |
||||||
|
14 |
AP8150086-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
15 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
16 |
WASHER SPRING (D10. 5) OEM PIAGGIO COMMON A LA RANGE-AP81216976 More informationQuantity required : 1 |
||||||
|
17 |
AP8234196 - PLAQUE FDC BIELLETTE; More informationQuantity required : 2 |
