Vehicle Exploded View - APRILIA SR 50 H20 Ditech E2 02-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

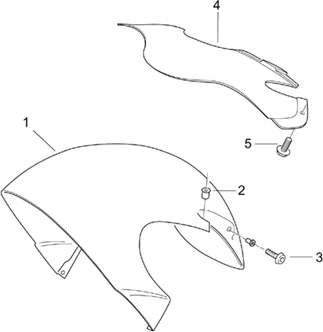

Chassis : 28.08 CARROSSERIE AV. IV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/574/SR_50_H20_Ditech_E2_02-04_28.08.PNG)
1 |
AP8226672 - GARDE-BOUE AV., ROUGE TRANS.; More informationQuantity required : 1 |
||||||
|
1 |
AP8226727 - GARDE-BOUE AV NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8226733 - GARDE-BOUE AVANT PEINT GRIS; More informationQuantity required : 1 |
||||||
|
1 |
AP8226759 - GARDE-BOUE AV NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8226767 - GARDE-BOUE AV BLEU; More informationQuantity required : 1 |
||||||
|
1 |
AP8226770-GUARD-MUD FRONT PEINT RED More informationQuantity required : 1 |
||||||
|
1 |
AP8226827 - PARAFANGO ANT.V.NERO DIABLO More informationQuantity required : 1 |
||||||
|
1 |
AP8226835-MUDGUARD ANT. V. BIANCO APR. More informationQuantity required : 1 |
||||||
|
1 |
AP8226841 - PARAFANGO ANT.V.NERO APRILIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
2 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 2 |
||||||
|
4 |
AP8258036-COVER INF. LEG SHIELD, BLACK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
5 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 3 |
