Vehicle Exploded View - APRILIA SR 50 H20 Ditech E2 02-04
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

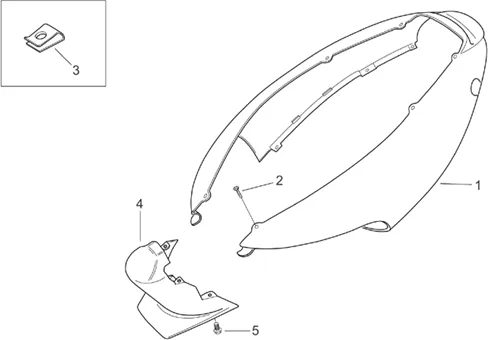

Chassis : 28.12 CARROSSERIE POSTERIEURE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/574/SR_50_H20_Ditech_E2_02-04_28.12.PNG)
1 |
AP8258483 - QUEUE, NOIR+DECALC. More informationQuantity required : 1 |
||||||
|
1 |
AP8258550 - QUEUE, GRIS More informationQuantity required : 1 |
||||||
|
1 |
AP8258701 - QUEUE, BLEUE; More informationQuantity required : 1 |
||||||
|
1 |
AP8258782 - QUEUE, NOIR D. More informationQuantity required : 1 |
||||||
|
1 |
AP8258810 - QUEUE, NOIR D. More informationQuantity required : 1 |
||||||
|
1 |
AP8258823 - QUEUE, NOIR D.; More informationQuantity required : 1 |
||||||
|
1 |
AP8258830-TAIL, BLEUE More informationQuantity required : 1 |
||||||
|
1 |
AP8258844 - QUEUE, ROUGE; More informationQuantity required : 1 |
||||||
|
1 |
AP8268204 - CODONE V.GRIGIO PIOMBO More informationQuantity required : 1 |
||||||
|
1 |
AP8268219 - CODONE V.GRIGIO MAGNET More informationQuantity required : 1 |
||||||
|
1 |
AP8268245 - CODONE V.BIANCO APRILIA More informationQuantity required : 1 |
||||||
|
1 |
Qu.carén.noire a. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
2 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
3 |
NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763 More informationQuantity required : 4 |
||||||
|
4 |
AP8249708-EMBOUT SEAT BLACK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
5 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
