Vehicle Exploded View - APRILIA SR 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

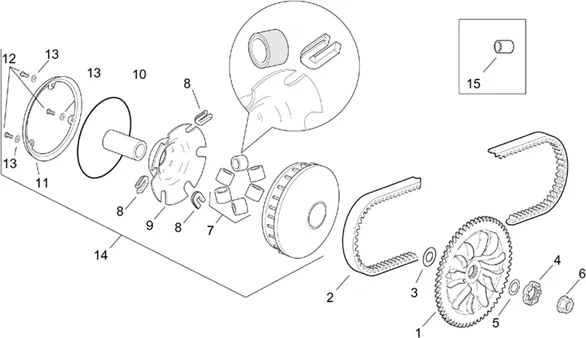

Moteur : 29.54 VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/579/SR_125_1999-2001_29.54.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/6/8/img/66768.jpg)
1 |
FLASQUE FIXE DE PULLEY MOTRICE OEM PIAGGIO 125 TYPHOON 2T, SKIPPER 2T, HEXAGON 2T 1998 > 2005/GILERA 125 RUNNER 2T 1998 > 2005/APRILIA 125 SR 2T 1999 > 2001-487957 More informationQuantity required : 1 |
||||||
1 |
Poulie primaire fixe |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/0/img/66460.jpg)
2 |
DRIVE BELT MAXI SCOOTER OEM PIAGGIO 125 TYPHOON 2T, SKIPPER 2T, HEXAGON 2T 1998 > 2005/GILERA 125 RUNNER 2T 1998 > 2005-434812 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/2/img/66462.jpg)
3 |
WASHER PLATE (17X32X1) PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-434885 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/4/3/img/66543.jpg)
4 |
OEM SCOOTER KICK OEM PIAGGIO 125 TYPHOON 2T, SKIPPER 2T, HEXAGON 2T 1998 > 2005/GILERA 125 RUNNER 2T 1998 > 2005-478032 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/6/img/66436.jpg)
5 |
WASHER PLATE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-433391 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/3/img/72693.jpg)
6 |
NUT IGNITION/PULLEY OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-B015804 More informationQuantity required : 1 |
||||||
|
7 |
VARIATOR ROLLER (SET OF 6) "PIAGGIO GENUINE PART" SKIPPER LX 125 2 STROKE -CM1024025 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/0/4/img/66404.jpg)
8 |
VARIATOR SLIDING BLOCK "PIAGGIO GENUINE PART" 125 HEXAGON 2 STROKE, SKIPPER 2 STROKE, TYPHOON 2 STROKE 1998>2004/GILERA 125 RUNNER 2 STROKE 1998>2004/APRILIA 125 SR 2 STROKE 1999>2001 -431280 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/3/img/66653.jpg)
9 |
483981-FLASQUE More informationQuantity required : 1 |
||||||
|
10 |
JOINT |
||||||
|
11 |
431281 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
12 |
SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/6/img/63836.jpg)
13 |
WASHER SPRING (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-006964 More informationQuantity required : 3 |
||||||
|
14 |
483981-FLASQUE More informationQuantity required : 1 |
||||||
|
15 |
ENTRETOISE |
