Vehicle Exploded View - APRILIA SR 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

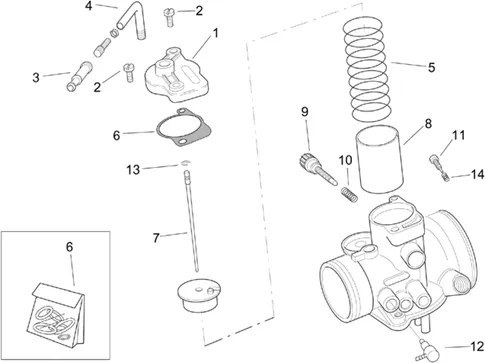

Moteur : 29.31 CARBURATEUR DELL'ORTO II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/579/SR_125_1999-2001_29.31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/2/1/img/66421.jpg)
1 |
432412 - COUVERCLE CARBU More informationQuantity required : 1 |
||||||
2 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/8/7/img/70587.jpg)
3 |
CAPUCHON RUBBER DE GAINE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-875551 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/9/img/65699.jpg)
4 |
COUDE DE CABLE DE THROTTLE ON CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-113903 More informationQuantity required : 1 |
||||||
|
5 |
RESSORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/3/img/66973.jpg)
6 |
POCHETTE/KIT JOINTS OF CARBURETTOR OEM PIAGGIO 125 VESPA ET4 2000 > 2005-498412 More informationQuantity required : 1 |
||||||
|
7 |
487123 - AIGUILLE M06 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/6/7/img/68567.jpg)
8 |
SLIDE FOR CARB "PIAGGIO GENUINE PART" 125 TYPHOON 2STROKE/GILERA 125 RUNNER 2STROKE -825843 More informationQuantity required : 1 |
||||||
|
9 |
432425 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
10 |
SPRING SCREW AIR CARBU OEM PIAGGIO COMMON A LA RANGE-152608 More informationQuantity required : 1 |
||||||
|
11 |
Vis réglage air |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/8/5/img/66485.jpg)
12 |
FITTING ARRIVE D'HUILE ON CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-436206 More informationQuantity required : 1 |
||||||
|
13 |
AP8222674 - AGRAFE POINTEAU CONIQUE More informationQuantity required : 1 |
||||||
|
14 |
Res.vis rég.air mini |
