Vehicle Exploded View - APRILIA SR 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

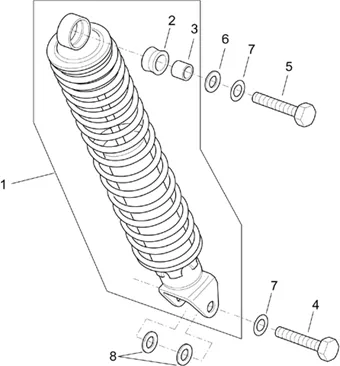

Chassis : 28.06 SUSPENSION ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/579/SR_125_1999-2001_28.06.PNG)
1 |
Amortisseur; |
||||||
|
2 |
AP8144259 - CAOUTCHOUC; More informationQuantity required : 1 |
||||||
|
3 |
AP8221304-BUSH More informationQuantity required : 1 |
||||||
|
4 |
AP8150323-SCREW More informationQuantity required : 1 |
||||||
|
5 |
AP8150250-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
6 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/0/img/71840.jpg)
7 |
WASHER ELASTIC COURBE (11X21X1) OEM PIAGGIO COMMON A LA RANGE-AP8150210 More informationQuantity required : 1 |
||||||
|
8 |
AP8120363 - RONDELLE D'APPUI More informationQuantity required : 2 |
