Vehicle Exploded View - APRILIA SR 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

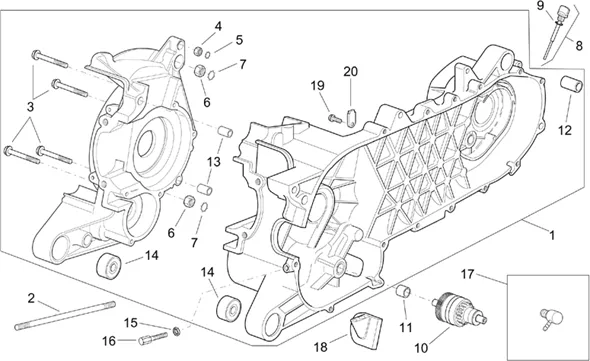

Moteur : 29.45 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/579/SR_125_1999-2001_29.45.PNG)
1 |
CARTER |
||||||
|
1 |
8284025 - CARTER More informationQuantity required : 1 |
||||||
|
2 |
Vis sans tête |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/1/img/72721.jpg)
3 |
SCREW FLANGE TH (6X50) OEM PIAGGIO COMMON A LA RANGE-B016775 More informationQuantity required : 7 |
||||||
|
4 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020006 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/1/img/66181.jpg)
5 |
WASHER BRAKE (M6) OEM PIAGGIO COMMON A LA RANGE-287223 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
6 |
NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/8/img/65698.jpg)
7 |
WASHER ARRET OEM PIAGGIO COMMON A LA RANGE-113533 More informationQuantity required : 2 |
||||||
|
8 |
AP8550586 - TIGE NIVEAU HUILE COMPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
8 |
JAUGE NIVEAU OIL TRANSMISSION OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER-832130 More informationQuantity required : 1 |
||||||
|
9 |
483851 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/0/7/img/66407.jpg)
10 |
LANCEUR/RENVOI DE STARTER MOTOR OEM PIAGGIO 100 ZIP, FLY, LIBERTY 4T 2006 >, 125 TYPHOON 2T, HEXAGON 2T, SKIPPER 2T 1998 > 2005/GILERA 125 RUNNER 2T 1998 > 2005/APRILIA 100 SCARABEO 4T 2001 >-431321 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
11 |
BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860 More informationQuantity required : 1 |
||||||
|
12 |
Silentbloc |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
13 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/4/img/68554.jpg)
14 |
BEARING (10X30X14) CASING ENGINE (ARTICULATION) OEM PIAGGIO APRILIA 125 SR 1999 > 2001-825619 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
15 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/5/img/65745.jpg)
16 |
SCREW REGLAGE CABLE OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-146197 More informationQuantity required : 1 |
||||||
|
17 |
TUBO SFIATO |
||||||
|
18 |
PASSE CABLES |
||||||
|
19 |
Vis bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/9/img/67059.jpg)
20 |
PLATE DE MAINTIEN DU CABLE OF BRAKE ON CASING ENGINE OEM PIAGGIO FLY, LIBERTY, TYPHOON, NRG, ZIP, VESPA LX, SPRINT, S-564497 More informationQuantity required : 1 |
