Vehicle Exploded View - APRILIA SR 125 1999-2001 APRILIA

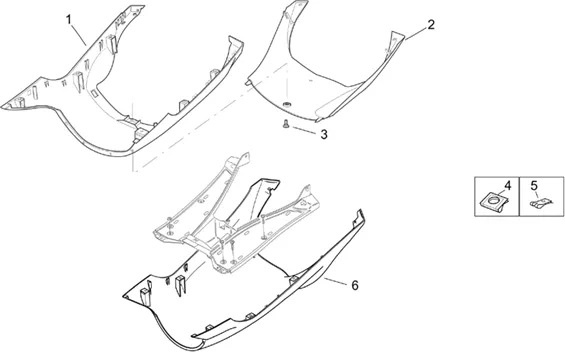

Chassis : 28.13 CARROSSERIE CENTRALE-SOUS-REP-PIEDS
Carrosserie centrale-Sous-rep-pieds
Search
SOTTOP.V.GRIGIO CYBER N/DEC.

1
P2R reference P2R reference
Maker reference Maker reference AP8268407

SOTTOP.V.GRIGIO CYBER N/DEC.

Ss-rep-p. bleu space;

1
P2R reference P2R reference
Maker reference Maker reference AP8148399

Ss-rep-p. bleu space;

Sous-rep-pieds, gris blade;

1
P2R reference P2R reference
Maker reference Maker reference AP8148410

Sous-rep-pieds, gris blade;

Sous-rep-pieds, gris sil.+Déc.

1
P2R reference P2R reference
Maker reference Maker reference AP8248463

Sous-rep-pieds, gris sil.+Déc.

Sous-rep-pieds, rouge fl.+Déc.;

1
P2R reference P2R reference
Maker reference Maker reference AP8249112

Sous-rep-pieds, rouge fl.+Déc.;

AP8139713 - PROTEGE-CARTER GRIS CYBER;

2
P2R reference P2R reference 49386
Maker reference Maker reference AP8139713

AP8139713 - PROTEGE-CARTER GRIS CYBER;

More information

Quantity required : 1

AP8148400 - PROTEGE-CARTER BLEU SPACE;

2
P2R reference P2R reference 50326
Maker reference Maker reference AP8148400

AP8148400 - PROTEGE-CARTER BLEU SPACE;

More information

Quantity required : 1

AP8148498 - PROTEGE-CARTER ROUGE FLUO;

2
P2R reference P2R reference 50347
Maker reference Maker reference AP8148498

AP8148498 - PROTEGE-CARTER ROUGE FLUO;

More information

Quantity required : 1

Carter Gris Silver;

2
P2R reference P2R reference
Maker reference Maker reference AP8148503

Carter Gris Silver;

Carter huil gr.blade

2
P2R reference P2R reference
Maker reference Maker reference AP8239941

Carter huil gr.blade

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

3
P2R reference P2R reference 71933
Maker reference Maker reference AP8152246

SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

4
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 3

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

5
P2R reference P2R reference 72143
Maker reference Maker reference AP8201763

NUT SHEET METAL OEM PIAGGIO COMMON A LA RANGE-AP8201763

More information

Quantity required : 6

6
P2R reference P2R reference
Maker reference Maker reference AP81490055

6
P2R reference P2R reference
Maker reference Maker reference AP81490635

AP8268400 - SOUS-REP-PIEDS, JAUNE

6
P2R reference P2R reference 60043
Maker reference Maker reference AP8268400

AP8268400 - SOUS-REP-PIEDS, JAUNE

More information

Quantity required : 1

AP8249924 - SOUS-REP-PIEDS NOIR;

6
P2R reference P2R reference 58923
Maker reference Maker reference AP8249924

AP8249924 - SOUS-REP-PIEDS NOIR;

More information

Quantity required : 1

AP8249929 - SOUS-REP-PIEDS NOIR;

6
P2R reference P2R reference 58927
Maker reference Maker reference AP8249929

AP8249929 - SOUS-REP-PIEDS NOIR;

More information

Quantity required : 1

AP8258212 - SOUS-REP-PIEDS, ROUGE;

6
P2R reference P2R reference 59070
Maker reference Maker reference AP8258212

AP8258212 - SOUS-REP-PIEDS, ROUGE;

More information

Quantity required : 1
