Vehicle Exploded View - APRILIA SR 125 1999-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

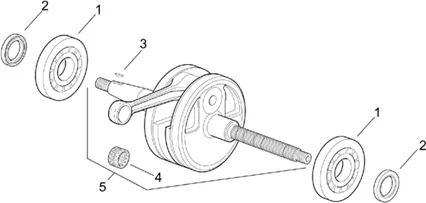

Moteur : 29.47 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/579/SR_125_1999-2001_29.47.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/2/img/66652.jpg)
1 |
BEARING (25X68X12) DE VILLEBREQUIN OEM PIAGGIO 125 TYPHOON 2T, SKIPPER 2T, HEXAGON 2T 1998 > 2005/GILERA 125 RUNNER 2T 1998 > 2005-483970 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/6/img/66456.jpg)
2 |
SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 2 STROKE -4345826 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
3 |
CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267 More informationQuantity required : 1 |
||||||
4 |
Cage à rouleaux cuivre |
||||||
|
4 |
Cage à rouleaux bleue |
||||||
|
4 |
Cage à rouleaux gris |
||||||
|
4 |
Cage à rouleaux vert |
||||||
|
5 |
Arbre moteur cpl. |
