Vehicle Exploded View - APRILIA SPORT CITY ONE 50 Sport City ONE 50 2T 2V E3 2008-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

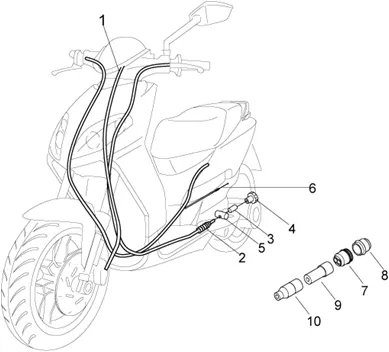

Moteur : 29.41 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/283/Sport_City_ONE_50_2T_2V_E3_2008-2011_29.41.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/8/2/img/69782.jpg)
1 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >, 50 SPORT-CITY ONE 2008 >-858542 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/5/img/68435.jpg)
2 |
TRANSMISSION BRAKE REAR OEM PIAGGIO 50 TYPHOON 2010 > 2016/APRILIA 50 SR MOTARD 2010 > 2016-666930 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
3 |
PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
4 |
NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/1/img/66051.jpg)
5 |
BUSH/EMBOUT DE CABLE OF BRAKE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-266040 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/8/5/img/70785.jpg)
6 |
CABLE/CONTROL/TRANSMISSION OF PUMP A OIL OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 > 2016-890303 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/3/img/66083.jpg)
7 |
DEDOUBLEUR/REPARTITEUR OEM PIAGGIO 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (ENSEMBLE DE 3 PIECES-WITHOUT LES PROTECTIONS)-269571 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/8/img/66108.jpg)
8 |
PROTECTOR DE REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271976 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/9/img/66109.jpg)
9 |
PROTECTOR DU REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271977 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/4/img/66084.jpg)
10 |
BUTEE DE GAINE DE REPARTITEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-269572 More informationQuantity required : 1 |
