Vehicle Exploded View - APRILIA SPORT CITY ONE 50 Sport City ONE 50 2T 2V E3 2008-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

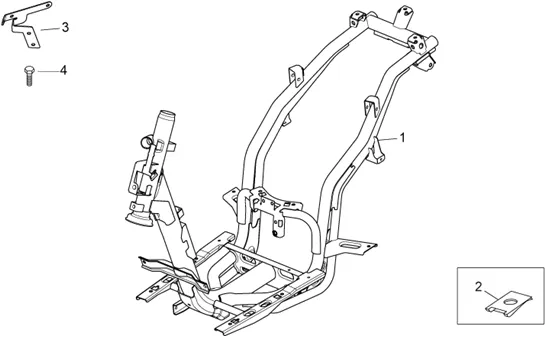

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/283/Sport_City_ONE_50_2T_2V_E3_2008-2011_28.01.PNG)
1 |
852442 - CHASSIS More informationQuantity required : 1 |
||||||
|
1 |
672174 - CHASSIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/4/img/68464.jpg)
1 |
FRAME/CADRE OEM PIAGGIO 50 TYPHOON 2010 > 2016, SR MOTARD APRILIA 2012 > 2014-672750 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
2 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 16 |
||||||
|
3 |
890234-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
4 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
||||||
|
4 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
