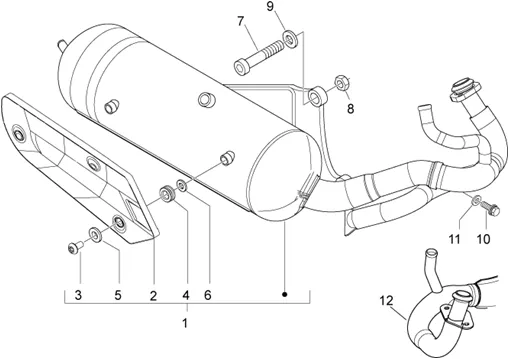

Chassis : 28.22 GROUPE D’ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/283/Sport_City_ONE_50_2T_2V_E3_2008-2011_28.22.PNG)
1 |
890374 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/9/8/img/70798.jpg)
1 |
EXHAUST "PIAGGIO GENUINE PART" APRILIA 50 SR MOTARD 2011>, SPORT-CITY ONE -890664 More informationQuantity required : 1 |
||||||
|
1 |
B014024-SILENCER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/9/img/68909.jpg)
2 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST OEM PIAGGIO 50 FLY, NRG, TYPHOON, ZIP/GILERA 50 STALKER/APRILIA 50 SR-830325 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/7/5/img/69675.jpg)
2 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST OEM PIAGGIO APRILIA 50 SPORT-CITY ONE 2008 > 2011, 125 SPORT-CITY 2008 > 2011-853127 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 3 |
||||||
|
3 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/7/3/img/68173.jpg)
3 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-651014 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
4 |
GUIDE CABLE (8X10X16) OEM PIAGGIO COMMON A TOUTE LA RANGE-487665 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/5/img/68585.jpg)
4 |
WASHER SPACER PROTECTOR EXHAUST OEM PIAGGIO APRILIA SRV 850 201 > 2014, SR 50 2018/GILERA DNA, RUNNER, STALKER, GP 800/PIAGGIO FLY, NRG, TYPHOON, ZIP-826117 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/6/img/68586.jpg)
5 |
WASHER T (5X14) DE SHEET METAL EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-826118 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
5 |
WASHER PLATE (5X16) SHEET METAL EXHAUST OEM PIAGGIO COMMON A TOUTE LA RANGE-827526 More informationQuantity required : 3 |
||||||
|
6 |
WASHER SPACER PROTECTOR EXHAUST OEM PIAGGIO APRILIA SRV 850 201 > 2014, SR 50 2018/GILERA DNA, RUNNER, STALKER, GP 800/PIAGGIO FLY, NRG, TYPHOON, ZIP-826117 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/5/img/69355.jpg)
7 |
SCREW BTR (8X75) OEM PIAGGIO COMMON A LA RANGE-845591 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
8 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
9 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/3/img/66433.jpg)
10 |
SCREW/CAP EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-433122 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/2/img/65412.jpg)
11 |
GASKET OBTURATEUR EXHAUST COMMON A L ENSEMBLE DE LA RANGE-016195 More informationQuantity required : 1 |
||||||
|
12 |
890429 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
