Vehicle Exploded View - APRILIA SPORT CITY ONE 50 Sport City ONE 50 2T 2V E3 2008-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

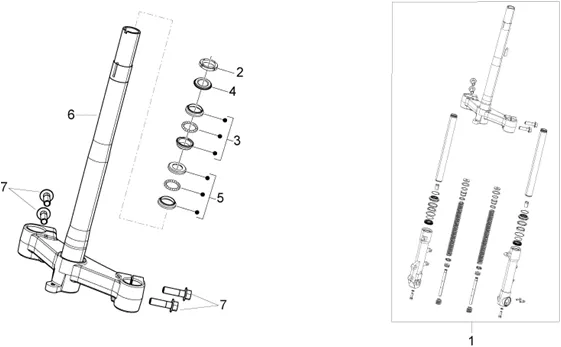

Chassis : 28.03 BASE AVEC TUBE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/283/Sport_City_ONE_50_2T_2V_E3_2008-2011_28.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/4/0/img/68440.jpg)
1 |
FORK SCOOT OEM PIAGGIO 50 TYPHOON 2010 > 2016/APRILIA 50 SR MOTARD 2010 > 2016, 50 SPORTCITY-ONE 2008 > 2011-668484 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/9/img/65339.jpg)
2 |
NUT SERRAGE STEERING OEM PIAGGIO ON L'ENSEMBLE DE LA RANGE MAXI SCOOTER-0111094 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/6/1/img/68161.jpg)
3 |
SET OF STEERING SCOOT OEM PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR (UPPER)-65069345 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/3/img/63783.jpg)
4 |
WASHER DE TIGHTENING OF FORK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC ET MAXI SCOOTER 125 CC-0037514 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/0/1/8/img/87018.jpg)
5 |
BEARING DE STEERING LOWER OEM PIAGGIO 50-125 ZIP, FLY, VESPA GTS, VESPA LXV, PRIMAVERA, VESPA S, 125-250-300-400-500 MP3-65007545 More informationQuantity required : 1 |
||||||
|
5 |
BEARING DE STEERING LOWER OEM PIAGGIO 50-125 ZIP, FLY, VESPA GTS, VESPA LXV, PRIMAVERA, VESPA S, 125-250-300-400-500 MP3-65007545 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/7/0/img/69770.jpg)
6 |
TE DE FORK OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >, SPORT-CITY ONE 2008 >-858318 More informationQuantity required : 1 |
||||||
7 |
600482-SCREW More informationQuantity required : 4 |
