Vehicle Exploded View - APRILIA SPORT CITY ONE 50 Sport City ONE 50 2T 2V E3 2008-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

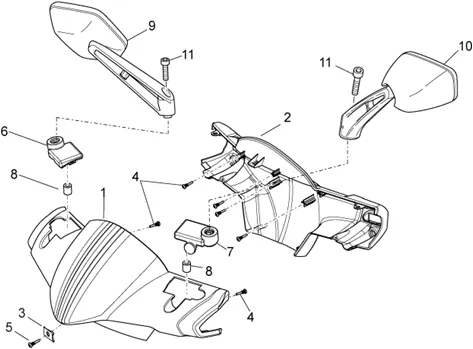

Chassis : 28.08 CARROSSERIE AV. II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/283/Sport_City_ONE_50_2T_2V_E3_2008-2011_28.08.PNG)
1 |
HANDLEBAR COVER FRONT OEM PIAGGIO 50-125 APRILIA CITY ONE 2008 >/DERBI VARIANT2012 > UNPAINTED READY TO PAINT-853049 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/6/6/4/img/39664.jpg)
1 |
HANDLEBAR COVER OEM PIAGGIO APRILIA 50-125 SPORT-CITY ONE 2008 > BLACK-8530490090 More informationQuantity required : 1 |
||||||
|
1 |
85304900R7 - PLANCHE AV, ROUGE More informationQuantity required : 1 |
||||||
|
1 |
85304900XB1 - SUPPORT, AV BLANC More informationQuantity required : 1 |
||||||
|
1 |
85304900XV4-TAIL CAR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/5/3/img/69653.jpg)
2 |
HANDLEBAR COVER REAR OEM PIAGGIO 50 TYPHOON 2011 >/APRILIA 50 SR MOTARD 2011 >, SPORT-CITY (BUTTON HORN ROND) UNPAINTED READY TO PAINT-853050 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/5/4/img/69654.jpg)
2 |
HANDLEBAR COVER REAR OEM PIAGGIO 50 TYPHOON 2012 >/APRILIA 50 SR MOTARD 2012 >, SPORT CITY-ONE 2008 > (BUTTON AVERTISSEUR ROND) BLACK-8530500090 More informationQuantity required : 1 |
||||||
|
2 |
85305000R7-PLANCHE AR, RED More informationQuantity required : 1 |
||||||
|
2 |
85305000XB1-BRACKET, AR WHITE More informationQuantity required : 1 |
||||||
|
2 |
85305000XV4-TAIL CAR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
3 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
4 |
SCREW AUTOTARAUDEUSE (4X16) OEM PIAGGIO COMMON A LA RANGE-267115 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
5 |
SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/6/9/img/69669.jpg)
6 |
CAP RIGHT MIRROR OEM APRILIA 50 SPORT CITY ONE 2008 > 2011-853072 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/3/1/img/69731.jpg)
7 |
856455-CAP More informationQuantity required : 1 |
||||||
|
8 |
853074-BUSH More informationQuantity required : 2 |
||||||
|
9 |
858537-MIROIR MIRROR DTE * More informationQuantity required : 1 |
||||||
|
10 |
LEFT MIRROR OEM APRILIA 50-125 SPORT CITY ONE 2008 > 2011-858538 More informationQuantity required : 1 |
||||||
|
11 |
872997-SCREW M8X55 More informationQuantity required : 2 |
