Vehicle Exploded View - APRILIA SPORT CITY ONE 50 Sport City ONE 50 2T 2V E3 2008-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

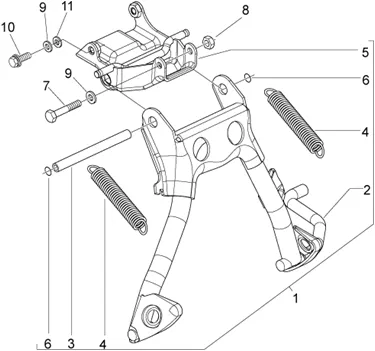

Chassis : 28.02 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/283/Sport_City_ONE_50_2T_2V_E3_2008-2011_28.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/0/6/img/68406.jpg)
1 |
CENTER STAND "PIAGGIO GENUINE PART" 50 TYPHOON 2010>2016/APRILIA 50 SR MOTARD 2010>2014>, SPORT-CITY ONE 2008>2011 -666302 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/0/5/img/70805.jpg)
1 |
CENTER STAND "PIAGGIO GENUINE PART" 50 FLY 2T 2010>2011/APRILIA 50 SPORT-CITY 2STROKE 2008>2011 -890890 More informationQuantity required : 1 |
||||||
2 |
666259 - BEQUILLE CENTRALE More informationQuantity required : 1 |
||||||
|
2 |
890891 - BEQUILLE CENTRALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/7/img/67287.jpg)
3 |
SHAFT OF CENTRE STAND OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-583603 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/3/img/66143.jpg)
4 |
SPRING DE CENTRE STAND OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-278940 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/1/img/66121.jpg)
5 |
BRACKET DE CENTRE STAND OEM PIAGGIO 50 TYPHOON, STALKER-272929 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/2/img/66102.jpg)
6 |
GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE SCOOTER 50CC 2T-271695 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/7/img/65617.jpg)
7 |
SCREW TH (8X70) OEM PIAGGIO COMMON A LA RANGE-030080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
8 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
9 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/2/img/65612.jpg)
10 |
SCREW TH (8X35) OEM PIAGGIO COMMON A LA RANGE-030072 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
11 |
WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861 More informationQuantity required : 2 |
