Vehicle Exploded View - APRILIA SCARABEO 500 Light 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

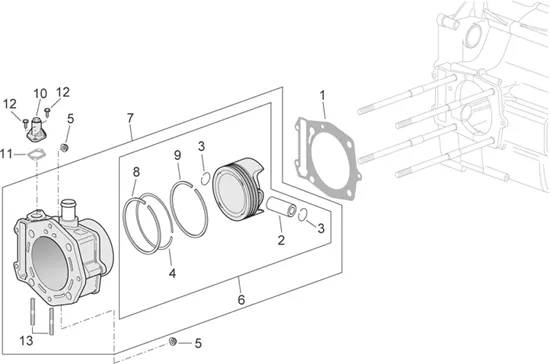

Moteur : 29.36 CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/609/Scarabeo_500_Light_2006-2008_29.36.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/3/img/68903.jpg)
1 |
CYLINDER BASE GASKET DE CYLINDER (0, 8MM) NE PAS UTILSER WITH CASING CM3236014A/B OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-830275 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/4/img/68904.jpg)
1 |
CYLINDER BASE GASKET DE CYLINDER (0, 6MM) NE PAS UTILSER WITH CASING CM3236014A/B OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 400-500-830276 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/5/img/68905.jpg)
1 |
CYLINDER BASE GASKET DE CYLINDER (0, 4MM) NE PAS UTILSER WITH CASING CM3236014A/B OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 400-500-830277 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/8/img/68698.jpg)
2 |
SHAFT OF PISTON (D22) OEM PIAGGIO 500-530 MP3-827820 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/9/img/68729.jpg)
3 |
CIRCLIPS DE PISTON OEM PIAGGIO 500 MP3 2007 >-828116 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/7/img/68687.jpg)
4 |
PISTON RING INTERMEDIAIRE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 500 CC 2008 <-827706 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/2/img/69062.jpg)
4 |
PISTON RING INTERMEDIAIRE OEM PIAGGIO 500 FUOCO, BEVERLY, MP3, X10-833451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/4/3/img/69343.jpg)
4 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" 400 MP3, X8, X-EVO/APRILIA 400 ATLANTIC, SCARABEO -845313 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
5 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/2/0/img/69020.jpg)
6 |
8328120002 - GR.PISTON More informationQuantity required : 1 |
||||||
6 |
8328120003 - GR.PISTON More informationQuantity required : 1 |
||||||
|
6 |
8328120004 - GR.PISTON More informationQuantity required : 1 |
||||||
|
6 |
B0185030001 - GROUP DE PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/8/4/img/72784.jpg)
6 |
PISTON (CAT 2) "PIAGGIO GENUINE PART" 400 MP3 2007>, BEVERLY 2006>, X8 2004>2006, X-EVO 2007>/APRILIA 400 ATLANTIC 2005>, SCARABEO 2006> -B0185030002 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/8/5/img/72785.jpg)
6 |
PISTON (CAT 3) "PIAGGIO GENUINE PART" 400 MP3 2007>, BEVERLY 2006>, X8 2004>2006, X-EVO 2007>/APRILIA 400 ATLANTIC 2005>, SCARABEO 2006> -B0185030003- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/8/6/img/72786.jpg)
6 |
PISTON (4) "PIAGGIO GENUINE PART" COMMON FOR 400CC RANGE -B0185030004 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/9/3/img/72793.jpg)
6 |
PISTON "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/GILERA 500 FUOCO (COMPLETE CAT.1) -B0190180001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/9/4/img/72794.jpg)
6 |
PISTON MAXI SCOOTER OEM PIAGGIO 500 MP3 2011 >, X10 2012 >, BEVERLY 2007 >/GILERA 500 FUOCO 2007 >/APRILIA 500 SCARABEO 2006 > (COMPLETE CAT. 2)-B0190180002 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/9/5/img/72795.jpg)
6 |
PISTON MAXI SCOOTER OEM PIAGGIO 500 MP3, X10, BEVERLY/GILERA 500 FUOCO (COMPLETE CAT. 3) 2016 <-B0190180003 More informationQuantity required : 1 |
||||||
|
6 |
PISTON MAXI SCOOTER OEM PIAGGIO 500 MP3, X10, BEVERLY/GILERA 500 FUOCO (COMPLETE CAT. 4)-B0190180004 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/2/8/9/img/142289.jpg)
7 |
CYLINDER PISTON (FONTE) OEM PIAGGIO 500 MP3 2011 > 2018, X10 2012 >, BEVERLY 2007 > 2012/APRILIA 500 SCARABEO 2006 > 2008/GILERA 500 FUOCO 2007 >-1A001833 More informationQuantity required : 1 |
||||||
|
7 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" PIAGGIO 500 X9, BEVERLY/GILERA 500 NEXUS/APRILIA 500 ATLANTIC -832811 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/8/7/img/72787.jpg)
7 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 400 MP3 2007, BEVERLY 2006>, X EVO 2007>, X8 2003>/APRILIA 400 ATLANTIC 2005>, 400 SCARABEO 2005> -B018504 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/7/img/69017.jpg)
8 |
PISTON RING DE LAMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 500 CC 2008 <-832770 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/1/img/69061.jpg)
8 |
PISTON RING DE LAMP OEM PIAGGIO 500 FUOCO, BEVERLY, MP3, X10-833450 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/4/2/img/69342.jpg)
8 |
PISTON RING DE LAMP OEM PIAGGIO 400 MP3, X8, X-EVO/APRILIA 400 ATLANTIC, SCARABEO 2010 <-845312 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/8/img/68688.jpg)
9 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 500 CC -827707 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/3/img/69063.jpg)
9 |
PISTON RING RACLEUR OEM PIAGGIO 500 MP3, X10, BEVERLY/GILERA 500 FUOCO-833452 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/4/4/img/69344.jpg)
9 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" 400 MP3, X8, X-EVO/APRILIA 400 ATLANTIC, SCARABEO -845314 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
10 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
|
10 |
TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
11 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
12 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/0/img/139390.jpg)
13 |
STUD (8X46) OEM PIAGGIO MULTI-USAGE COMMON LA RANGE-1A003632R More informationQuantity required : 2 |
