Vehicle Exploded View - APRILIA SCARABEO 500 Light 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

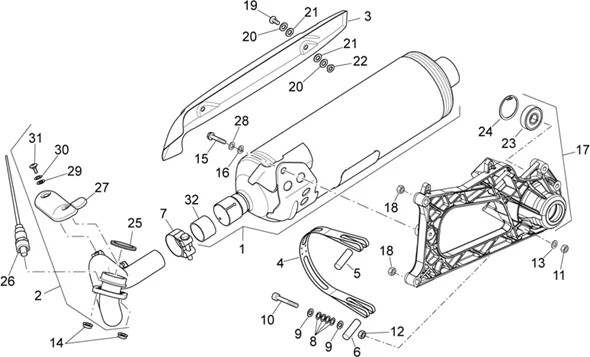

Chassis : 28.22 GROUPE D’ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/609/Scarabeo_500_Light_2006-2008_28.22.PNG)
1 |
845359 - POT D'ECHAPPEMENT; More informationQuantity required : 1 |
||||||
|
1 |
8733195 - POT ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
1 |
874701-SILENCER D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
2 |
845453 - COLLECTEUR More informationQuantity required : 1 |
||||||
|
2 |
COUDE EXHAUST OEM PIAGGIO 400 X-EVO, X8, BEVERLY/APRILIA 400-500 SCARABEO, ATLANTIC-847103 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/7/7/img/71377.jpg)
3 |
PROTECTOR/SHEET METAL DE SILENCER EXHAUST CHROME OEM PIAGGIO 500 MP3 2011 >, BEVERLY CRUISER 2007 >/APRILIA 400-500 ATLANTIC SPRINT 2005 >, SCARABEO LIGHT 2006 >-AP8119862 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/9/2/img/67392.jpg)
4 |
FLANGE FOR EXHAUST "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS 400-500 CC -599533 More informationQuantity required : 1 |
||||||
|
5 |
Axe fixation sup. |
||||||
|
6 |
AP8161097-PERNO INFERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/5/9/img/70559.jpg)
7 |
CLAMP EXHAUST OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 350-400-500/MOTO-GUZZI V7, V9/GILERA GP 800/APRILIA 850 SRV-874957 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/4/img/63844.jpg)
8 |
WASHER SPRING OEM PIAGGIO COMMON A LA RANGE-007608 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/8/4/img/69384.jpg)
9 |
WASHER PLATE (8X18X2) OEM PIAGGIO COMMON A LA RANGE-846163 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/5/img/69235.jpg)
10 |
SCREW BTR (8X80) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-842502 More informationQuantity required : 1 |
||||||
|
11 |
AP8152350-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/2/7/img/50827.jpg)
12 |
NUT (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150027 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
13 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/8/2/2/img/145822.jpg)
14 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 2 |
||||||
|
14 |
NUT FLANGE M8 OEM PIAGGIO COMMON A LA RANGE-2B004511 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/2/img/67372.jpg)
15 |
SCREW TORX (8X30) HEAD BOMBEE OEM PIAGGIO COMMON A LA RANGE-599208 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/5/7/img/69157.jpg)
16 |
WASHER PLATE (8X22X3) OEM PIAGGIO COMMON A LA RANGE-840569 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/4/7/img/65847.jpg)
17 |
ARM DE SUSPENSION REAR OEM PIAGGIO 400-500 MP3 2007 >, BEVERLY 2005 >, 400 X8 2004 > 2006, X-EVO 2007 >/APRILIA 400-500 SCARABEO 2008 >/GILERA 500 FUOCO 2007 >-1A002350 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/9/img/69069.jpg)
18 |
NUT FLANGE (10X1, 25) OEM PIAGGIO COMMON A LA RANGE-833520 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
19 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/2/img/71742.jpg)
20 |
WASHER THERMOFUGE D6 SHEET METAL EXHAUST OEM PIAGGIO 500 MP3, BEVERLY/APRILIA 500 SCARABEO, ATLANTIC-AP8144064 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/3/img/71743.jpg)
21 |
WASHER RUBBER (8X14X2) OEM PIAGGIO COMMON A LA RANGE-AP8144065 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/3/2/img/69632.jpg)
22 |
SPACER SHEET METAL EXHAUST OEM PIAGGIO 500 MP3, BEVERLY/APRILIA 500 SCARABEO, ATLANTIC-851946 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/6/img/68546.jpg)
23 |
BEARING (17X47X14) DE ARM DE SUSPENSION REAR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-82545R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
24 |
CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/2/img/68732.jpg)
25 |
GASKET EXHAUST ON CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-828194 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/5/5/img/67855.jpg)
26 |
SONDA LAMBDA OEM PIAGGIO 125-300-350-400-500 MP3, BEVERLY, 125 YOURBAN, 125 VESPA GTS, 125-300 X10, X7, 400 X8, X-EVO/GILERA 125-300-500 NEXUS, 500 FUOCO/APRILIA 300-400-500 ATLANTIC-6398066 More informationQuantity required : 1 |
||||||
|
27 |
840263-PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
28 |
WASHER (8, 2X16X2, 2) OEM PIAGGIO COMMON A TOUTE LA RANGE-834187 More informationQuantity required : 1 |
||||||
|
29 |
RONDELLE |
||||||
|
30 |
840782-SPRING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/0/img/69070.jpg)
31 |
SCREW BTR HEAD BOMBEE (6X10) OEM PIAGGIO COMMON A LA RANGE-833569 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/5/8/img/70558.jpg)
32 |
GASKET EXHAUST OEM PIAGGIO 350 BEVERLY, X10, 400-500 MP3, BEVERLY, X-EVO/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV, MANA/GILERA 500 NEXUS, FUOCO, 850 GP-8749465 More informationQuantity required : 1 |
