Vehicle Exploded View - APRILIA SCARABEO 500 Light 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

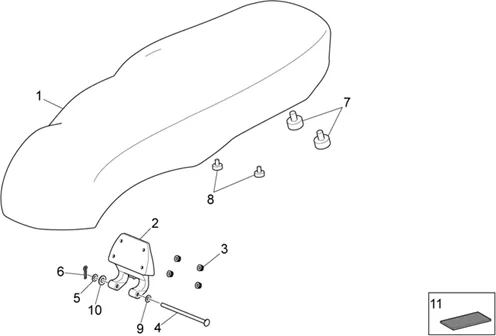

Chassis : 28.13 GROUPE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/609/Scarabeo_500_Light_2006-2008_28.13.PNG)
1 |
AP8129496 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
AP8129498 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
AP8129502 - SELLE BRUN More informationQuantity required : 1 |
||||||
|
1 |
AP8268909 - SELLE More informationQuantity required : 1 |
||||||
|
2 |
AP8179124 - CERNIERA SELLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
3 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/4/4/img/57044.jpg)
4 |
SHAFT OF STAND OEM APRILIA 50 MOJITO 1999 > 2004-AP8221290 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/6/img/71406.jpg)
5 |
WASHER PLATE (D5) OEM PIAGGIO COMMIUN A LA RANGE-AP8120592 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/3/img/72133.JPG)
6 |
GOUPILLE (20X1. 2) OEM PIAGGIO COMMON A LA RANGE-AP8201431 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/9/img/71749.jpg)
7 |
AP8144089-RUBBER FRONT SEAT * More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/7/img/71747.jpg)
8 |
BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144087 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
9 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
10 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
11 |
AP8117033-ADHESIVE SPONGE More informationQuantity required : 1 |
