Vehicle Exploded View - APRILIA SCARABEO 500 Light 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

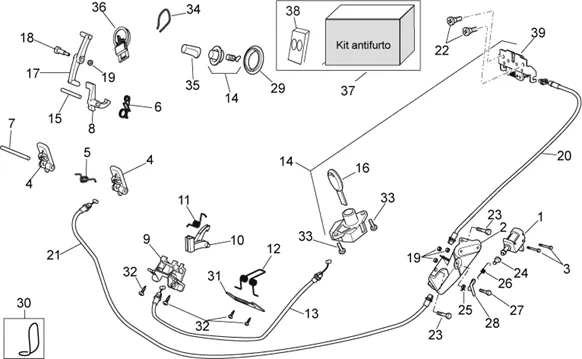

Chassis : 28.31 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/609/Scarabeo_500_Light_2006-2008_28.31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/0/7/0/img/178070.jpg)
1 |
ENGINE OUVERTURE SEAT OEM PIAGGIO COMMON A LA RANGE-1D002276R More informationQuantity required : 1 |
||||||
|
1 |
ENGINE OUVERTURE SEAT OEM PIAGGIO COMMON A LA RANGE-1D002276R More informationQuantity required : 1 |
||||||
2 |
577130-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/3/img/67293.jpg)
3 |
SCREW TH (4X35) OEM PIAGGIO COMMON A LA RANGE-584121 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/7/img/67167.jpg)
4 |
LEVER DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE-577861 More informationQuantity required : 2 |
||||||
|
5 |
575610 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/0/4/img/140004.jpg)
6 |
SPRING LEVER LATCH DE VIDE POCHE FRONT OEM PIAGGIO COMMON A ALA RANGE MAXI SCOOTER 125-250-300-1B003658 More informationQuantity required : 1 |
||||||
|
7 |
575062-SPINDLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/9/img/67119.jpg)
8 |
CROCHET LATCH UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-575607 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/2/7/img/67627.jpg)
9 |
BRACKET CROCHET OEM PIAGGIO COMMON A LA RANGE-620491 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/5/img/67135.jpg)
10 |
CROCHET DE LOCK HATCH FUEL OEM PIAGGIO BEVERLY, MP3, X10, X7, X8, X9, X-EVO-576626 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/7/img/67117.jpg)
11 |
SPRING OF RETURN OEM PIAGGIO COMMON A LA RANGE-575604 More informationQuantity required : 1 |
||||||
|
12 |
851532 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/0/3/img/46203.jpg)
13 |
CABLE/CONTROL/TRANSMISSION OUVERTURE DE HATCH A FUEL OEM PIAGGIO APRILIA 250-300-400-500 SCARABEO-AP8114492 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/9/2/img/55492.jpg)
14 |
IGNITION SWITCH/LOCK OEM PIAGGIO 250-300-400-500 SCARABEO 2006 > 2008-AP8202455 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/0/img/67110.jpg)
15 |
SHAFT OF CROCHET OF FASTENING DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE-575021 More informationQuantity required : 1 |
||||||
|
16 |
AP8104598-" CLE " " SCARABEO " " WITHOUT TRANSPO. " More informationQuantity required : 1 |
||||||
|
16 |
KEYBLANK "PIAGGIO GENUINE PART" FOR APRILIA 250-400 SCARABEO - WITHOUT TRANSPONDER -AP8202409 More informationQuantity required : 1 |
||||||
|
17 |
AP8202456-LEVA SERRATURA More informationQuantity required : 1 |
||||||
|
18 |
AP8202457-PERNO LEVA SERRATURA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
19 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/0/7/img/46207.jpg)
20 |
CABLE/CONTROL/TRANSMISSION OUVERTURE DE SEAT OEM PIAGGIO APRILIA 250-300-400-500 SCARABEO-AP8114499 More informationQuantity required : 1 |
||||||
|
21 |
AP8114498-CABLE SERRATURA SELLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
22 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 2 |
||||||
|
23 |
AP8150359-SCREW More informationQuantity required : 2 |
||||||
|
24 |
Joint |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
25 |
SPRING D'ARRET DE IGNITION SWITCH OEM PIAGGIO COMMON A TOUTE LA RANGE-253937 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/2/6/img/67626.jpg)
26 |
SPRING DE LOCK OEM PIAGGIO COMMON A LA RANGE-620415 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/4/img/66314.jpg)
27 |
SCREW SPECIALE DOIGT DE LOCK OEM PIAGGIO COMMON A LA RANGE-299972 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/9/img/67149.jpg)
28 |
LEVER DE LOCK OEM PIAGGIO COMMON A LA RANGE-577129 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/4/1/img/67241.jpg)
29 |
CAPUCHON DE SWITCH A CLE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-582041 More informationQuantity required : 1 |
||||||
|
30 |
AP8121856-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/8/img/67118.jpg)
31 |
575605 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
32 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
33 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
34 |
SPRING D'ARRET SERRRURE OEM PIAGGIO COMMON A TOUTE LA RANGE-298838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/6/img/67166.jpg)
35 |
BLOC DE LOCK OEM PIAGGIO X7, X9, X10, BEVERLY, CARNABY/APRILIA SCARABEO-577816 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/8/img/67988.jpg)
36 |
IGNITION SWITCH/LOCK OEM PIAGGIO 125 VESPA LX, LIBERTY, FLY, 125-250-400 X-EVO 2007 >, X8 2004 > 2006, BEVERLY, 125-250-300 CARNABY, X7, VESPA GTS, X10, 125-250-500 X9-643132 More informationQuantity required : 1 |
||||||
|
37 |
AP8127796 - ANTIFURTO ELETTRONICO More informationQuantity required : 1 |
||||||
|
38 |
AP8127866 - TELECOMANDO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/3/img/72943.jpg)
39 |
MECANISME OUVERTURE DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-CM023704 More informationQuantity required : 1 |
