Vehicle Exploded View - APRILIA SCARABEO 500 Light 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

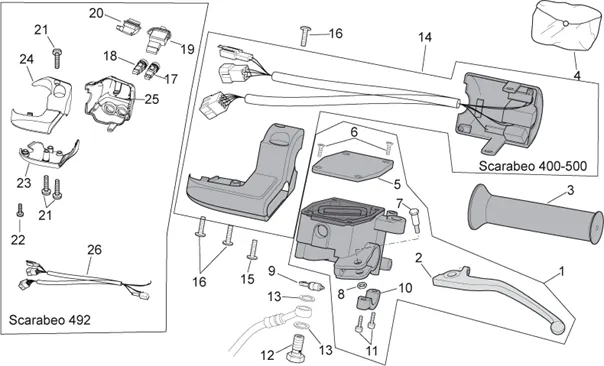

Chassis : 28.17 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/609/Scarabeo_500_Light_2006-2008_28.17.PNG)
1 |
AP8133957 - POMPA ANT. SX D.14 More informationQuantity required : 1 |
||||||
|
1 |
AP8133981 - POMPA FRENO POST.D13 More informationQuantity required : 1 |
||||||
|
2 |
AP8118641 - LEVIER FREIN More informationQuantity required : 1 |
||||||
|
2 |
AP8133809-LEVA BRAKE * More informationQuantity required : 1 |
||||||
|
3 |
AP8118643 - COUPLE MANETTES, NOIR More informationQuantity required : 1 |
||||||
|
4 |
MAINTENANCE KIT- FOR REAR BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA125 SCARABEO -AP8113862- More informationQuantity required : 1 |
||||||
|
4 |
AP8133810 - KIT REVISIONE POMPA More informationQuantity required : 1 |
||||||
|
5 |
858492-COVER PUMP More informationQuantity required : 1 |
||||||
|
5 |
AP8113860-COVER PUMP More informationQuantity required : 1 |
||||||
|
6 |
AP8113859 - VIS COUVERCLE POMPE; More informationQuantity required : 4 |
||||||
|
6 |
AP8133807-SCREW COVER PUMP More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
7 |
AP8125757-SCREW LEVER More informationQuantity required : 1 |
||||||
|
7 |
AP8213584-SCREW FISSAGGIO LEVA More informationQuantity required : 1 |
||||||
|
8 |
AP8213298-NUT More informationQuantity required : 1 |
||||||
|
8 |
AP8213585-DADO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
9 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
|
10 |
AP8113637-CAVALIER LEVER BRAKE More informationQuantity required : 1 |
||||||
|
10 |
AP8213586-CAVALLOTTO LEVA BRAKE More informationQuantity required : 1 |
||||||
|
11 |
AP8213299-SCREW CALOTTE More informationQuantity required : 2 |
||||||
|
11 |
AP8213582-SCREW CAPPELLOTTO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
12 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
13 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
|
14 |
851977-DISPOSITIVO SX DI COMANDO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
15 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-AP8152270 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/6/img/71936.jpg)
16 |
SCREW BTR HEAD BOMBEE (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152269 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/7/img/67177.jpg)
17 |
BUTTON/SWITCH AVERTISSEUR OEM PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT LEFT-58058R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/5/img/67265.jpg)
18 |
BUTTON WARNING OEM PIAGGIO 125-250-400 MP3, X-EVO, X9/APRILIA 250-300-400-500 SCARABEO-58284R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/6/img/67806.jpg)
19 |
CONTACTEUR/SWITCH DE INDICATOR OEM PIAGGIO 125-250-500 X9/APRILIA 250-300-400-500 SCARABEO-638708 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/2/img/67982.jpg)
20 |
SWITCH CODE/HEADLAMP OEM PIAGGIO 125-250-300-400 500 MP3 2008 > 2014, 125-250-400 X8 2004 > 2006, X9, X-EVO 2007 >, BEVERLY/GILERA 125 RUNNER 4T, 500 FUOCO/APRILIA 125-250-400 SCARABEO-642670 More informationQuantity required : 1 |
||||||
|
21 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-AP8152270 More informationQuantity required : 3 |
||||||
|
22 |
SCREW BTR HEAD BOMBEE (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8152269 More informationQuantity required : 1 |
||||||
|
23 |
851808-COMPLETE REAR COVER More informationQuantity required : 1 |
||||||
|
24 |
851810 - COUVERCLE COMMUTATEUR More informationQuantity required : 1 |
||||||
|
25 |
851806-BRACKET More informationQuantity required : 1 |
||||||
|
26 |
642988-DEVIO GCHE + CABL. More informationQuantity required : 1 |
