Vehicle Exploded View - APRILIA SCARABEO 500 Light 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

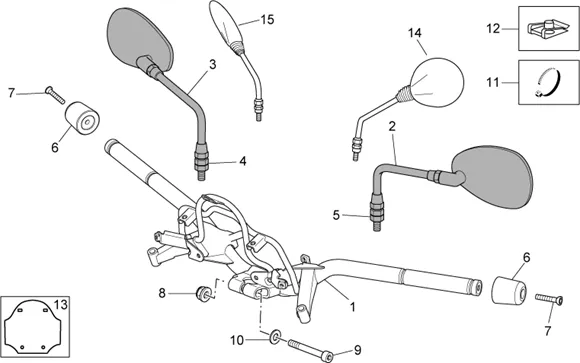

Chassis : 28.16 GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/609/Scarabeo_500_Light_2006-2008_28.16.PNG)
1 |
AP8118703-MANUBRIO More informationQuantity required : 1 |
||||||
|
2 |
AP8104527 - MIROIR RETROVISEUR GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/2/img/73362.jpg)
2 |
LEFT MIRROR OEM PIAGGIO 250-500 BEVERLY 2007/APRILIA 125-300 SCARABEO-LIGHT 2011 >, 400-500 SCARABEO-LIGHT 2006 >-CM178801 More informationQuantity required : 1 |
||||||
|
3 |
AP8104526 - MIROIR RETROVISEUR DTE More informationQuantity required : 1 |
||||||
|
3 |
RIGHT MIRROR OEM PIAGGIO 250-500 BEVERLY 2007/APRILIA 125-300 SCARABEO-LIGHT 2011 >, 400-500 SCARABEO-LIGHT 2006 >-CM178802 More informationQuantity required : 1 |
||||||
|
4 |
860841-CALIPER More informationQuantity required : 1 |
||||||
|
4 |
AP8121644 - ECROU AVEC PINCE CTTE DTE More informationQuantity required : 1 |
||||||
|
5 |
654772-BRACKET MIRROR More informationQuantity required : 1 |
||||||
|
5 |
AP8121645-NUT WITH PINCE CTTE GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/5/img/68465.jpg)
6 |
HANDLEBAR END OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-673243 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/0/3/img/50903.jpg)
7 |
SCREW BTR HEAD FRAISEE (6X55) OEM PIAGGIO COMMON A LA RANGE-AP8150503 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
8 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/2/img/71822.jpg)
9 |
SCREW BTR (10X70) OEM PIAGGIO COMMON A LA RANGE-AP8150088 More informationQuantity required : 1 |
||||||
|
9 |
AP8150392-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
10 |
WASHER PLATE (10. 5X18X2) OEM PIAGGIO COMMON A LA RANGE-AP8152176 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
11 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
12 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
|
13 |
851960 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/3/9/8/img/45398.jpg)
14 |
LEFT REARWIEW MIRROR (ROUND) "PIAGGIO GENUINE PART" APRILIA 125-250 SCARABEO 1999>2006, 400-500 SCARABEO 2006>2008 -P8104519 More informationQuantity required : 1 |
||||||
|
15 |
MIROIR RIGHT MIRROR ROND OEM PIAGGIO APRILIA 125-250 SCARABEO 1999 > 2006, 400-500 SCARABEO 2006 > 2008-X000D AP8104518 More informationQuantity required : 1 |
