Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

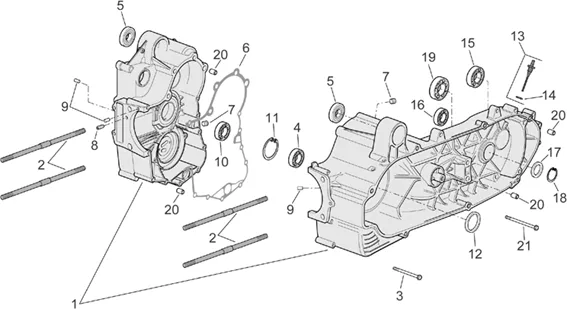

Moteur : 29.38 CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_29.38.PNG)
1 |
Carter moteur |
||||||
|
1 |
Carter moteur |
||||||
|
1 |
Carter moteur |
||||||
|
1 |
Carter moteur |
||||||
|
1 |
CM1568025001 - CARTER 1 More informationQuantity required : 1 |
||||||
|
1 |
CM1568025002-CASING 2 More informationQuantity required : 1 |
||||||
|
1 |
CM1568025003 - CARTER 3 More informationQuantity required : 1 |
||||||
|
1 |
CM1568025004 - CARTER 4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/6/img/109026.jpg)
2 |
STUD (10X1. 25X166) OEM PIAGGIO COMMON A LA RANGE-1A003631R More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/4/img/72714.jpg)
3 |
SCREW FLANGE TH (6X65) OEM PIAGGIO COMMON A LA RANGE-B016762 More informationQuantity required : 12 |
||||||
|
4 |
827234 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/0/9/img/68609.jpg)
5 |
BEARING (20X42X12) CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-82656R More informationQuantity required : 2 |
||||||
|
6 |
Joint |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/7/3/img/72673.jpg)
7 |
CAP (M12X1. 5X11) OEM PIAGGIO COMMON A LA RANGE-B015433 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/4/img/66654.jpg)
8 |
BUSE CASING MOREUR OEM PIAGGIO COMMON A LA RANGE-484034 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
9 |
PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/1/img/68611.jpg)
10 |
BEARING (17X47X14) DE CASING ENGINE OEM PIAGGIO 500 BEVERLY, X9/GILERA 500 NEXUS/APRILIA 500 ATLANTIC, 125 RS, RX, SX-82668R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/0/img/68610.jpg)
10 |
BEARING (20X52X15) SHAFT DE TRANSMISSION INTERMEDIAIRE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-82660R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
11 |
CLIPS/CIRCLIPS (47X50. 5X1. 75) OEM PIAGGIO COMMON A TOUTE LA RANGE-006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/2/img/70512.jpg)
12 |
OIL SEAL (35X47X7) CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-873932 More informationQuantity required : 1 |
||||||
|
13 |
Tige niveau huile compl. |
||||||
|
14 |
AP8550334 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/8/2/img/69082.jpg)
15 |
BEARING (20X47X14) DE REDUCTEUR (EX833701) OEM PIAGGIO COMMON A LA RANGE-1A024412R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/9/img/68899.jpg)
16 |
BEARING (15X42X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-83018R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/1/img/70511.jpg)
17 |
OIL SEAL (25X40X7) DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-873931 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/9/img/72699.jpg)
18 |
CLIPS/CIRCLIPS (25X26, 9X1, 2) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015959 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/6/img/68526.jpg)
19 |
BEARING (25X52X15) TRANSMISSION REAR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-825233 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
20 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 4 |
||||||
|
21 |
828922-SCREW More informationQuantity required : 1 |
