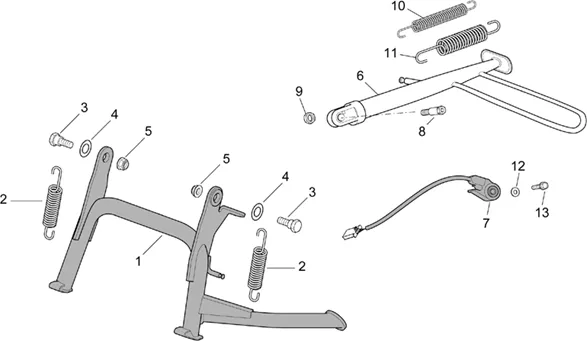

Chassis : 28.03 BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_28.03.PNG)
1 |
Béquille centrale; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/3/img/72303.jpg)
2 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO-AP8221204 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/6/4/img/46964.jpg)
3 |
SCREW MOUNTING DE STAND OEM PIAGGIO APRILIA 400-500 ATLANTIC, SCARABEO, 125 LEONARDO, SCARABEO 2008 <-AP8121932 More informationQuantity required : 2 |
||||||
|
4 |
AP8150471-WASHER ELASTIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
5 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 2 |
||||||
|
6 |
AP8146383 - BEQUILLE LATERALE; More informationQuantity required : 1 |
||||||
|
6 |
AP8146858 - CAVALLETTO LATERALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/8/7/img/69687.jpg)
7 |
CONTACTEUR DE STAND OEM PIAGGIO APRILIA ATLANTIC 125-250-300-400-500, SCARABEO 500, 1000 RSV-2, FUTURA, CAPONORD, TUONO V2, FALCO, 50-125 RS/MOTO GUZZI 750 BREVA, NEVADA-00N05700601 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/3/img/71503.jpg)
8 |
SCREW MOUNTING SIDE STAND OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121994 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/7/img/71907.jpg)
9 |
NUT DE SIDE STAND (10X1, 25) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8152001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/4/img/72304.jpg)
10 |
SPRING INTERNE RAPPEL STAND (PETIT SPRING) OEM PIAGGIO COMMON A LA RANGE-AP8221211 More informationQuantity required : 1 |
||||||
|
11 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 APRILIA/MOTO-GUZZI NORGE, BREVA, STELVIO-AP8221204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
12 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
13 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
