Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

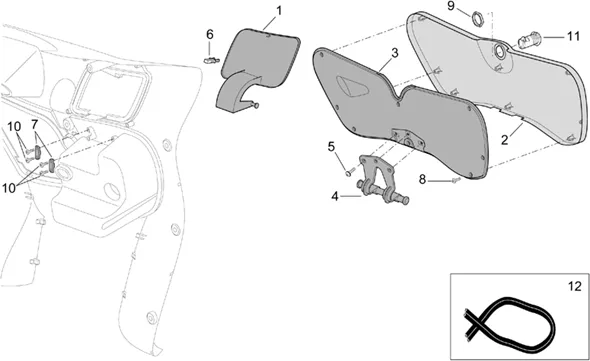

Chassis : 28.10 CARROSSERIE CENTRALE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_28.10.PNG)
1 |
AP8149200-LID ACCES, BLACK More informationQuantity required : 1 |
||||||
|
2 |
AP8149205-ABATT. DOOR-OBJ., GREY More informationQuantity required : 1 |
||||||
|
3 |
AP8158970 - CORNICHE; More informationQuantity required : 1 |
||||||
|
4 |
AP8168156 - CHARNIERE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
5 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 3 |
||||||
|
6 |
AP8104429 - BOUCHON DE FERMETURE More informationQuantity required : 1 |
||||||
|
7 |
AP8134799 - PLAQUETTE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
8 |
SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/4/img/71184.jpg)
9 |
NUT LOCK (M22 X 1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8102523 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
10 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 4 |
||||||
|
11 |
AP8104584 - SERRURE COFFRE More informationQuantity required : 1 |
||||||
|
12 |
AP8220531 - GUARNIZIONE BAULETTO PORT.7X4 More informationQuantity required : 1 |
