Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

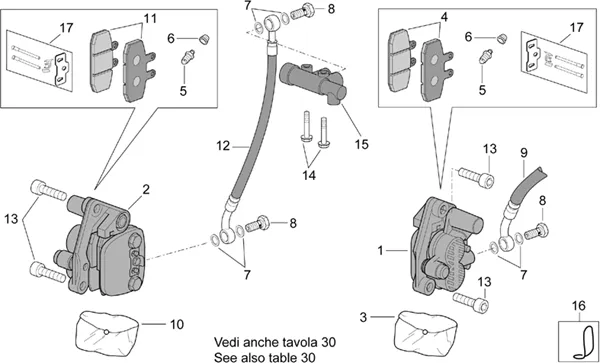

Chassis : 28.27 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_28.27.PNG)
1 |
AP8133702 - PINZA FRENO SX 2X25 More informationQuantity required : 1 |
||||||
|
1 |
AP8133737 - PINZA FRENO ANTERIORE SX More informationQuantity required : 1 |
||||||
|
2 |
AP8133705 - PINZA FRENO POST.D.30 More informationQuantity required : 1 |
||||||
|
2 |
AP8133706 - PINZA FRENO DX 2X22 More informationQuantity required : 1 |
||||||
|
3 |
AP8133538 - KIT REVISION PINCE; More informationQuantity required : 1 |
||||||
|
3 |
AP8133610-KIT REVISION PINCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/6/6/img/71666.jpg)
4 |
BRAKE PAD OEM PIAGGIO APRILIA 500 SCARABEO, ATLANTIC 2001 > 2006 FRONT LEFT, 125 SPORTCITY 2006 > AV, 125 SCARABEO 1999 > 2004 (GRIMECA)-AP8133725 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/9/img/72199.jpg)
5 |
SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8213108 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
6 |
CAPUCHON RENIFLARD BRAKE CALIPER OROGINE PIAGGIO COMMON A LA RANGE 2008 <-AP8113005 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
7 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
8 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 2 |
||||||
|
9 |
AP8113917 - TUBE FREIN AV; More informationQuantity required : 1 |
||||||
|
10 |
AP8133538 - KIT REVISION PINCE; More informationQuantity required : 1 |
||||||
|
10 |
AP8133610-KIT REVISION PINCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/6/5/img/71665.jpg)
11 |
BRAKE PADS FRONT OEM PIAGGIO APRILIA 500 SCARABEO 2003 >-AP8133724 More informationQuantity required : 1 |
||||||
|
12 |
AP8113924 - TUBE FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/3/img/71823.jpg)
13 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8150107 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
14 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/8/7/img/48787.jpg)
15 |
BRAKE VALVE "PIAGGIO GENUINE PART" APRILIA 125-250-400-500 ATLANTIC, SCARABEO (GRIMECA) -AP8133738 More informationQuantity required : 1 |
||||||
|
16 |
AP8121856-GUIDE-CABLE More informationQuantity required : 2 |
||||||
|
17 |
AP8113867-PIVOTS + RESSORTS PINCE More informationQuantity required : 2 |
