Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

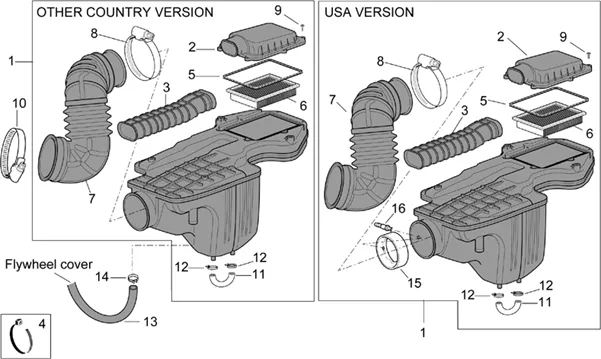

Chassis : 28.24 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_28.24.PNG)
1 |
AP8158032 - CAISSE FILTRE COMPLETE; More informationQuantity required : 1 |
||||||
|
1 |
AP8168971 - CASSA FILTRO CPL More informationQuantity required : 1 |
||||||
|
2 |
AP8149192 - COUVERCLE FILTRE; More informationQuantity required : 1 |
||||||
|
3 |
AP8144345 - DURITE D'ADMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
4 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 1 |
||||||
|
5 |
JOINT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/0/img/71220_20260205015820.jpg)
6 |
ELEMENT/MOUSSE DE AIR FILTER MOTO OEM PIAGGIO MOTO-GUZZI 750 V-7 2008 > 2011, BREVA 2003 > 2009, NEVADA 2004 > 2011/APRILIA 500 ATLANTIC 2001 > 2004, 500 SCARABEO 2003 > 2006-AP8104242 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/9/7/img/49697.jpg)
7 |
SLEEVE ENTRE HOUSING ET CARBURETTOR OEM PIAGGIO APRILIA 400-500 SCARABEO 2003 > 2006-AP8144336 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/8/img/71178.jpg)
8 |
CLAMP (70-50X8) ORRIGINE PIAGGIO COMMON A LA RANGE-AP8102401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
9 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 6 |
||||||
|
10 |
CLAMP (70-50X8) ORRIGINE PIAGGIO COMMON A LA RANGE-AP8102401 More informationQuantity required : 1 |
||||||
|
11 |
AP8144038-FUEL HOSE 6X10 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
12 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 2 |
||||||
|
13 |
TUYAU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/2/3/img/45123.jpg)
14 |
CLAMP CLIC HOSE (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101927 More informationQuantity required : 1 |
||||||
|
15 |
AP8104671 - VENTURI D.40 More informationQuantity required : 1 |
||||||
|
16 |
AP8104678 - CONNETTORE VENTURI More informationQuantity required : 1 |
