Vehicle Exploded View - APRILIA SCARABEO 500 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

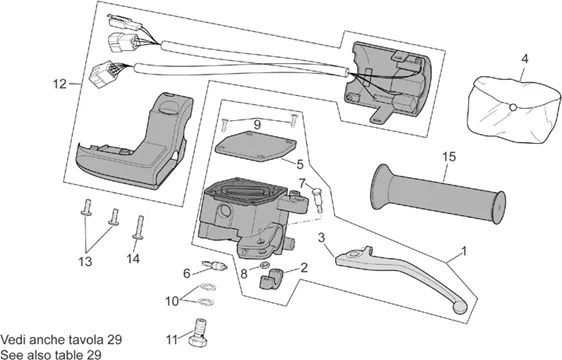

Chassis : 28.19 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/604/Scarabeo_500_2003-2006_28.19.PNG)
1 |
AP8113698 - MA?T.CYL. FREIN AR More informationQuantity required : 1 |
||||||
|
1 |
AP8133792 - POMPA FRENO SX More informationQuantity required : 1 |
||||||
|
2 |
AP8113637-CAVALIER LEVER BRAKE More informationQuantity required : 1 |
||||||
|
3 |
AP8118542-LEVER BRAKE More informationQuantity required : 1 |
||||||
|
4 |
AP8133537 - KIT REVISION POMPE; More informationQuantity required : 1 |
||||||
|
5 |
AP8113860-COVER PUMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
6 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
|
6 |
AP8127571 - INTERRUTTORE STOP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
7 |
AP8125757-SCREW LEVER More informationQuantity required : 1 |
||||||
|
8 |
AP8213298-NUT More informationQuantity required : 1 |
||||||
|
9 |
AP8113859 - VIS COUVERCLE POMPE; More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
10 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
11 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
|
12 |
AP8127100 - DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
13 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
14 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-AP8152270 More informationQuantity required : 1 |
||||||
|
15 |
AP8118643 - COUPLE MANETTES, NOIR More informationQuantity required : 1 |
